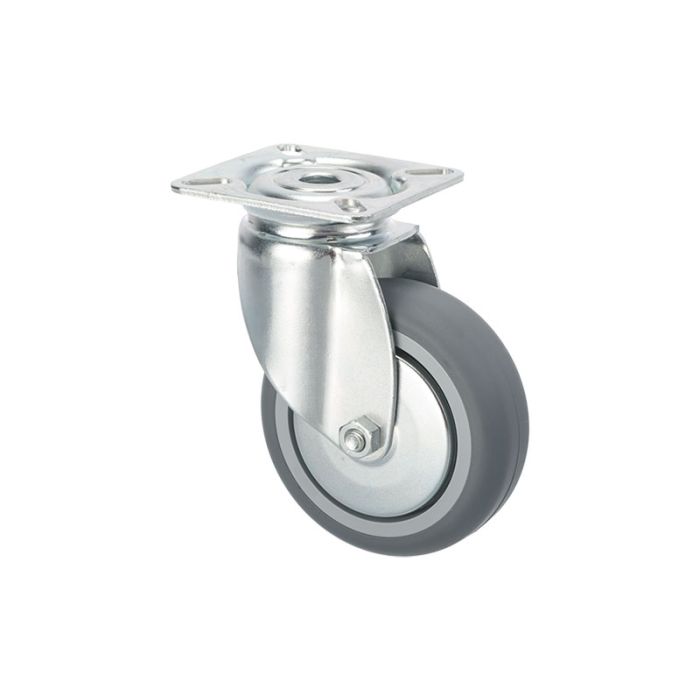

Swivel Caster Ø 75 without Brake
Tente swivel caster Ø 75 with Grey tread, without brake.
Specification
- Load capacity 75 kg
- Fork made of pressed steel
- Bright zinc plated, blue passivated
- Double ball bearing swivel head
- Wheel centre made of Polypropylene
- Tread: TENTEprene (thermoplastic rubber), grey non-marking
- Plate fitting
- Plain bearing
Delivery time if the product is out of stock is approx. 1 week.
Specification
- Load capacity 75 kg
- Fork made of pressed steel
- Bright zinc plated, blue passivated
- Double ball bearing swivel head
- Wheel centre made of Polypropylene
- Tread: TENTEprene (thermoplastic rubber), grey non-marking
- Plate fitting
- Plain bearing
Delivery time if the product is out of stock is approx. 1 week.
14 in stock
$13.80
| Manufacturer | Tente |
|---|---|
| Wheel diameter | 75 mm |
| Width of Tread | 25 mm |
| Swivel Interference | 123 mm |
| Overall height | 100 mm |
| Temperature | - 20 / + 60 °C |
| Standard | EN 12530 |
| Swivel Radius | 61,5 mm |
| Hardness of tread | Shore A 87 |
| Load capacity Dynamic / Static | 75 kg / 150 kg |
| Plate hole centres | 48/38 x 48/38 mm |
| Size of Plate | 60 x 60 mm |
| Weight (Kg) | 0.252000 |
| SKU | 219369 |
