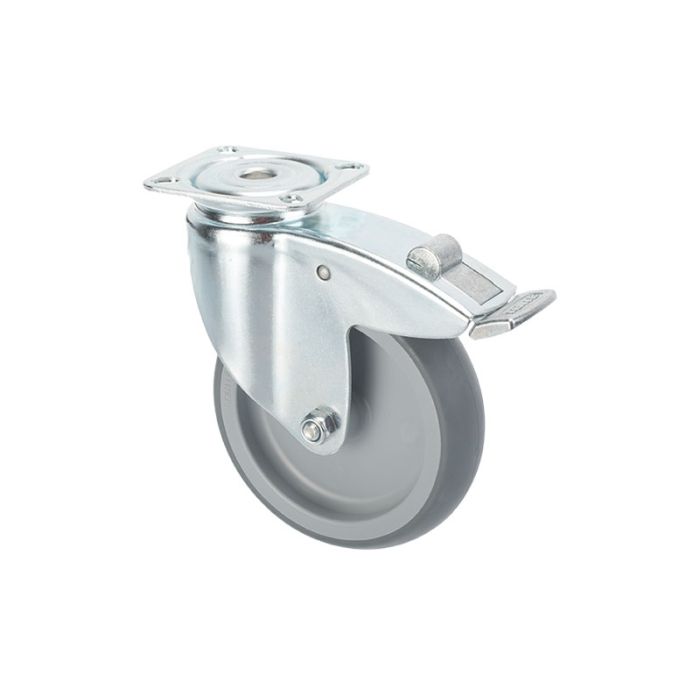

Swivel Caster Ø 125 with Brake
Tente swivel caster Ø 125 with Grey tread, with brake.
Specification
- Load capacity 100 kg
- Housing made of pressed steel
- Bright zinc plated, blue passivated
- Wheel axle with nut
- Double ball bearing swivel head
- Wheel centre made of Polypropylene
- Tread: TENTEprene (thermoplastic rubber), grey non-marking
- Plate fitting
- Plain bearing
Delivery time if the product is out of stock is approx. 1 week.
Specification
- Load capacity 100 kg
- Housing made of pressed steel
- Bright zinc plated, blue passivated
- Wheel axle with nut
- Double ball bearing swivel head
- Wheel centre made of Polypropylene
- Tread: TENTEprene (thermoplastic rubber), grey non-marking
- Plate fitting
- Plain bearing
Delivery time if the product is out of stock is approx. 1 week.
16 in stock
$30.80
| Manufacturer | Tente |
|---|---|
| Wheel diameter | 125 mm |
| Width of Tread | 32 mm |
| Swivel Interference | 262 mm |
| Overall height | 160 mm |
| Temperature | - 20 / + 60 °C |
| Standard | EN 12528 |
| Swivel Radius | 131 mm |
| Hardness of tread | Shore A 87 |
| Load capacity Dynamic / Static | 100 kg / 200 kg |
| Plate hole centres | 61,5/56 x 51,5/46,5 mm |
| Size of Plate | 77 x 67 mm |
| Weight (Kg) | 0.872000 |
| SKU | 219376 |
