Shelf Support Triade Pro Mini for Wooden Shelves

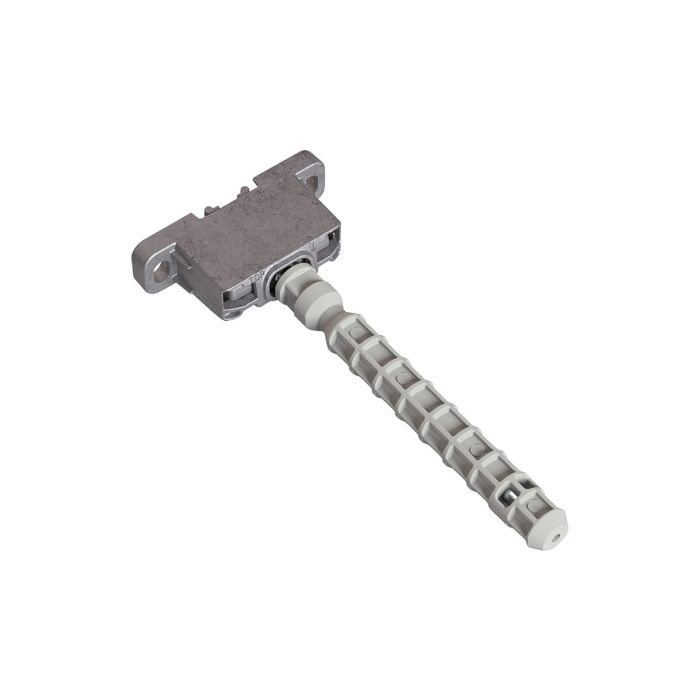

Triade PRO Mini is a concealed shelf bracket for wall mounting wooden shelves with a minimum thickness of 25 mm. The product has a steel pin overmoulded with technical plastic and supports up to 15 kg per pair at a shelf depth of 250 mm. Adjustment of both tilt and lateral position is easily done from the front. Adjustments are made using an S2 Allen key and a 10 mm spanner.

Minimum shelf depth: 160 mm. Recommended number per shelf: 2–4 pcs depending on width.
