SALICE Mini Hinge Series 600 94° Full Overlay C6A7C99

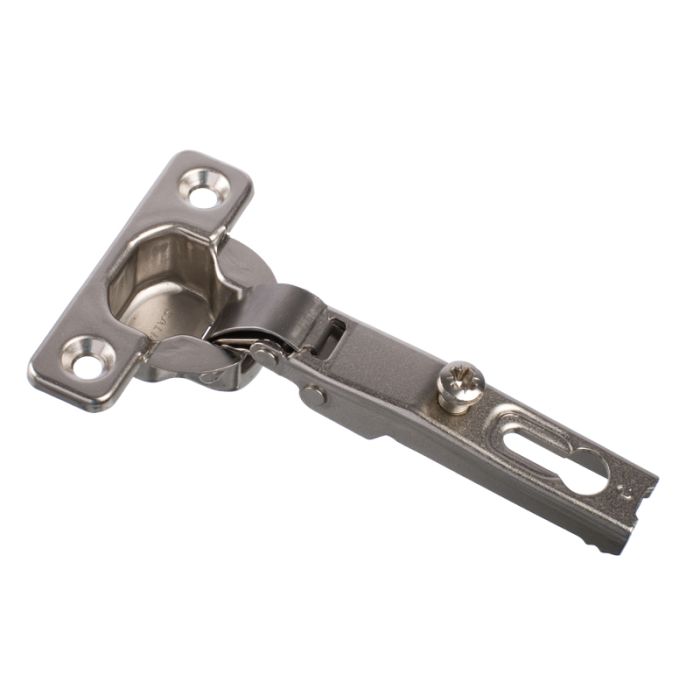

SALICE Series 600 Concealed Mini Hinge for full overlay door.
Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door
Mounting plate is not included and has to be ordered separately.
Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door
Mounting plate is not included and has to be ordered separately.
Product Name
Qty
SKU 200076
1516 in stock
| K | 3-8 mm |
|---|---|
| Drilling depth | 11,5 mm |
| ø | 26 mm |
| Material | Steel |
| Finish | Nickel Plated |
| Opening angle | 94° |
| DP | 38 x 7,5 |
