SALICE - Mini Hinge Series 600 45° C6A7M99

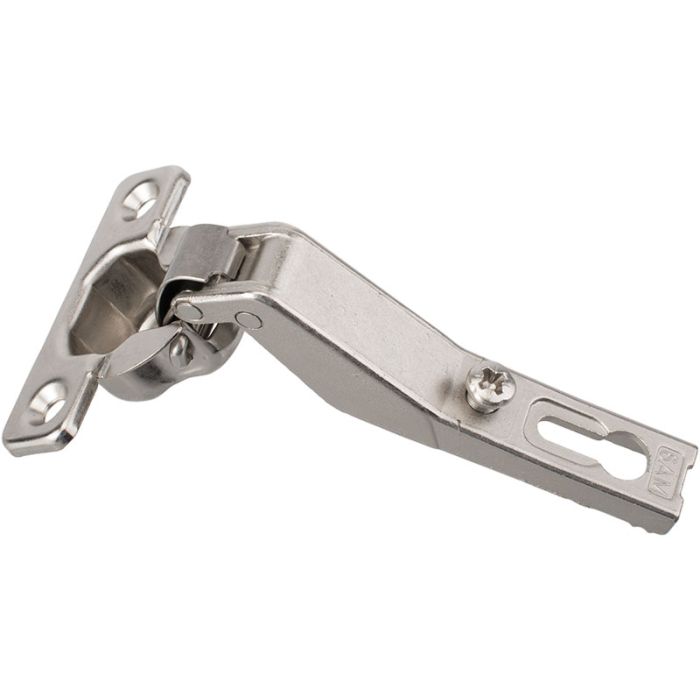

SALICE Series 600 Mini Hinge 45° angled arm.

Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- 45° angled arm
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door

Mounting plate is not included and has to be ordered separately.
311 in stock
SKU 200074
Weight (Kg) 0.045000
K 3-8 mm
Drilling depth 11,5 mm
ø 26 mm
Material Steel
Fixings Wood Screw
Finish Nickel Plated
Opening angle 94°
DP 38 x 7,5
