SALICE - Mini Hinge Series 600 30° C6A7E99

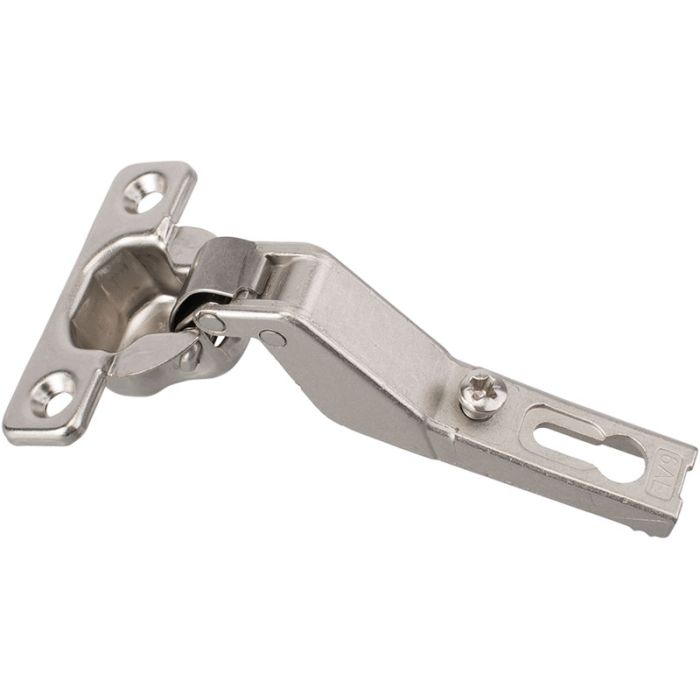

SALICE Series 600 Mini Hinge 30° angled arm.
Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- 30° angled arm
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door
Mounting plate is not included and has to be ordered separately.
Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- 30° angled arm
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door
Mounting plate is not included and has to be ordered separately.
57 in stock
$2.78
| SKU | 200069 |
|---|---|
| Weight (Kg) | 0.045000 |
| K | 3-8 mm |
| Drilling depth | 11,5 mm |
| ø | 26 mm |
| Material | Steel |
| Fixings | Wood Screw |
| Finish | Nickel Plated |
| Opening angle | 94° |
| DP | 38 x 7,5 |
