SALICE Mini Hinge Series 400 94° Half Overlay C4A7G99

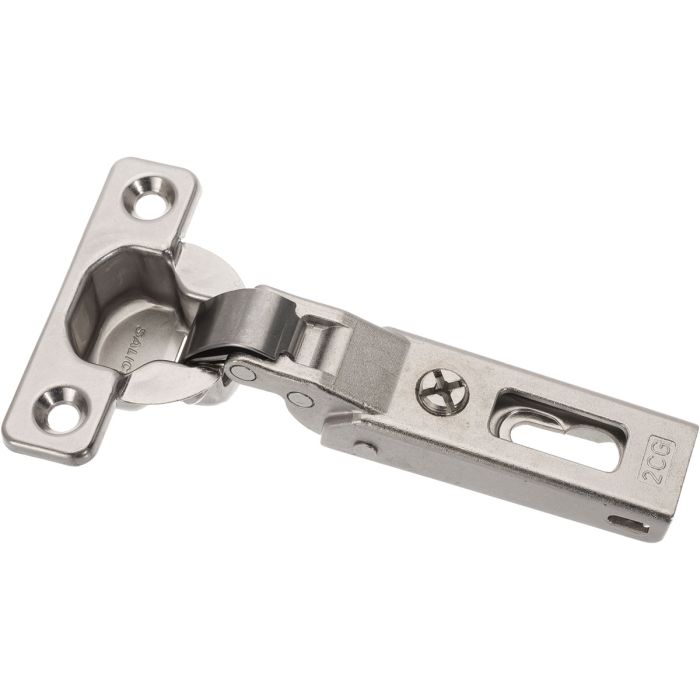

SALICE Series 400 Concealed Mini Hinge for half overlay door, C4A7G99.
Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door
Mounting plate is not included and has to be ordered separately.
269 in stock
$5.08
| SKU | 201765 |
|---|---|
| Weight (Kg) | 0.052000 |
| K | 3-8 mm |
| Drilling depth | 11,5 mm |
| ø | 26 mm |
| H= | H=3,5+K-(D) |
| Material | Steel |
| Fixings | Wood Screw |
| Finish | Nickel Plated |
| Opening angle | 94° |
| DP | 38 x 7,5 |
