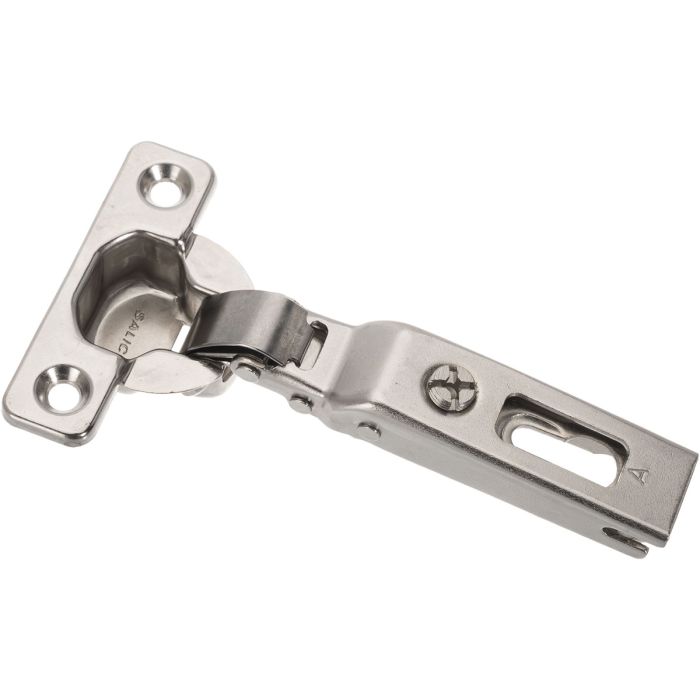

SALICE Mini Hinge Series 400 94° Full Overlay C4A7A99

SALICE Series 400 Concealed Mini Hinge for full overlay door, C4A7A99.
Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door
Mounting plate is not included and has to be ordered separately.
SKU | 210211 |
---|---|
Weight (Kg) | 0.048500 |
K | 3-8 mm |
Drilling depth | 11,5 mm |
ø | 26 mm |
H= | H=12,5+K-(D) |
Material | Steel |
Fixings | Wood Screw |
Finish | Nickel Plated |
Opening angle | 94° |
DP | 38 x 7,5 |
