SALICE Hinge Series F 94° Inset

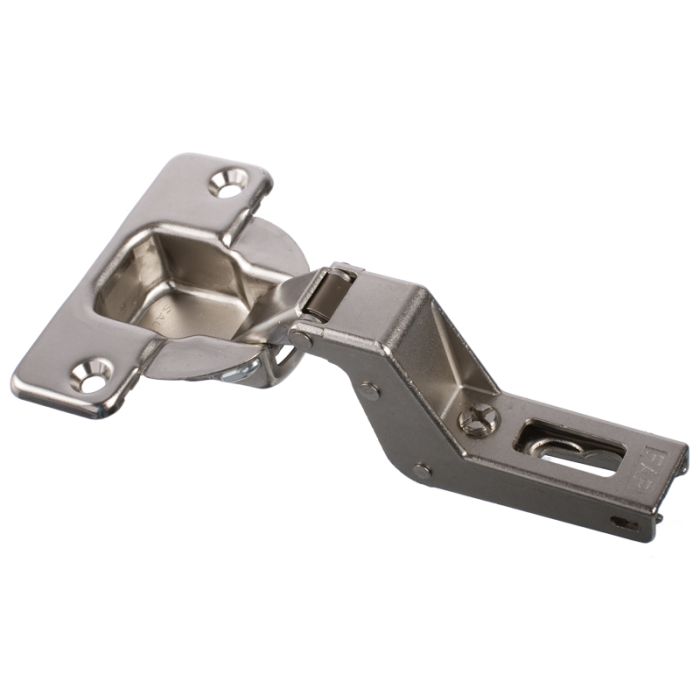

SALICE Series F Concealed hinge for inset door, 94° opening angle, 13 mm deep metal cup.
Technical information
- Automatic closing
- Specially designed for profile and thicker doors up to max. 40 mm.
- Hinge arm and cup made of steel and zamak, nickel plated
- 94° Opening angle
- 13 mm deep metal cup (Ø 40 mm)
- Possible drilling distance on the door (K): from 3 to 15 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Technical information
- Automatic closing
- Specially designed for profile and thicker doors up to max. 40 mm.
- Hinge arm and cup made of steel and zamak, nickel plated
- 94° Opening angle
- 13 mm deep metal cup (Ø 40 mm)
- Possible drilling distance on the door (K): from 3 to 15 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
K | 3-15 mm |
---|---|
Drilling depth | 13 mm |
ø | 40 mm |
Material | Steel |
Finish | Nickel Plated |
Opening angle | 94° |
