SALICE Hinge Series 700 Silentia+ 110° Inset C7A6PE6 Titanium

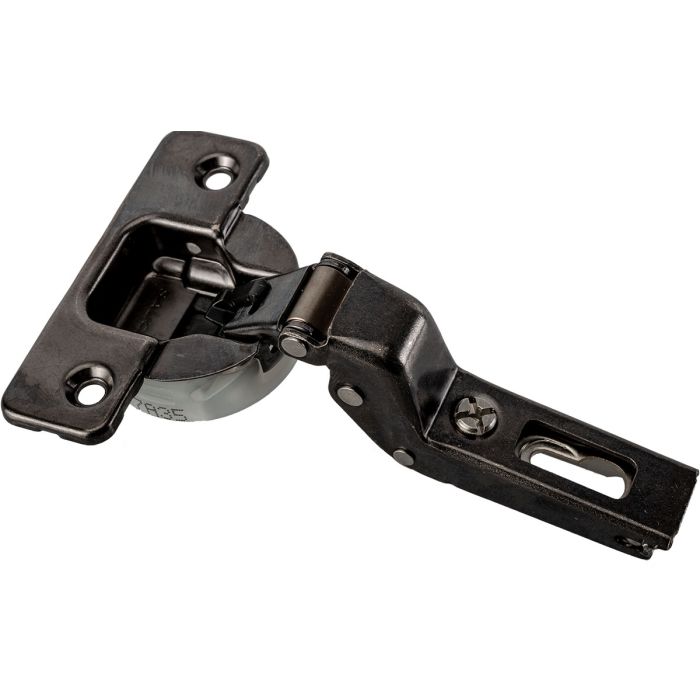

SALICE Series 700 Silentia+ 110° Concealed hinge for inset door C7A6PE6, Titanium finish.
Silentia+ is the second generation of Salice soft close hinges with two silicone oil dampers. Silentia+ is quipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.

Technical information
- 110° Opening angle
- with integrated soft-close mechanism in the hinge cup
- Switch +/- to adjust the soft close
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
