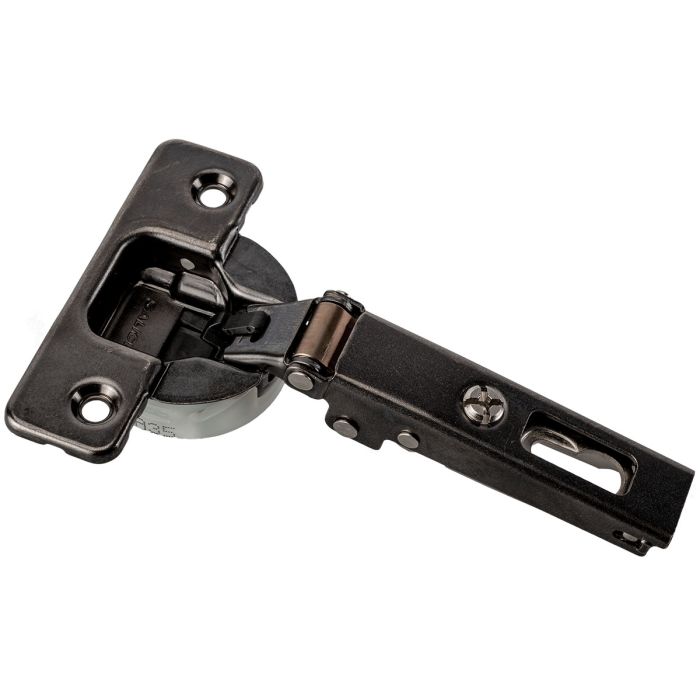

SALICE Hinge Series 700 Silentia+ 110° Full Overlay C7A6AE6 Titanium

SALICE Series 700 Silentia+ 110° Concealed hinge for full overlay door C7A6AE6, Titanium finish.
Silentia+ is the second generation of Salice soft close hinges with two silicone oil dampers. Silentia+ is quipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.

Technical information
- 110° Opening angle
- with integrated soft-close mechanism in the hinge cup
- Switch +/- to adjust the soft close
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.

130 in stock
SKU 219991
Weight (Kg) 0.080000
K 3-6 mm
Drilling depth 13,5 mm
ø 35 mm
H= H=15+K-(D)
Material Steel
Fixings Wood Screw
Finish Titanium
Opening angle 110°
DP 48 x 6
