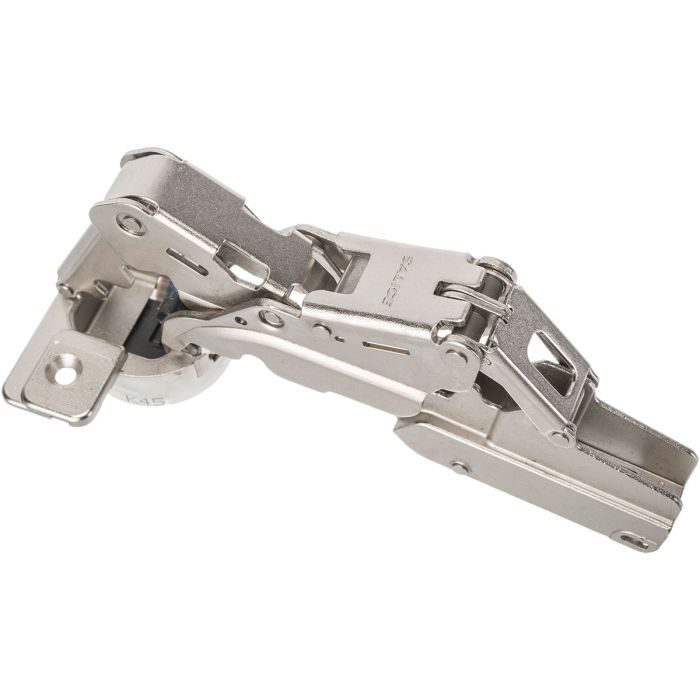

SALICE Hinge Series 200 Silentia+ 155° Inset C2PKPE9

SALICE Series 200 Silentia+ 155° Concealed hinge for thick inset door C2PKPE9, Nickel finish.
Silentia+ is the second generation of Salice soft close hinges with two silicone oil dampers. Silentia+ is quipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
Technical information
- 155° Opening angle
- Special opening movement for thicker doors
- with integrated soft-close mechanism in the hinge cup
- Switch +/- to adjust the soft close
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 9 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
SKU | 220343 |
---|---|
Weight (Kg) | 0.120000 |
K | 3-9 mm |
Drilling depth | 13,5 mm |
ø | 35 mm |
H= | H=-2+K+A |
Material | Steel |
Fixings | Wood Screw |
Finish | Nickel Plated |
Opening angle | 155° |
