SALICE Hinge Series 200 Push 155° Full Overlay C2ARA99

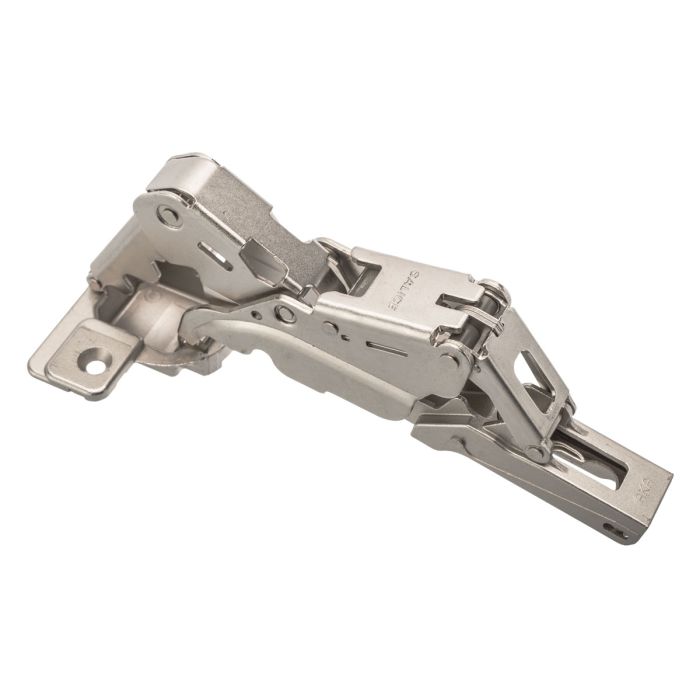

SALICE Series 200 Push 155° Concealed hinge for full overlay door C2ARA99.
Push hinges are equipped with a special spring that acts to open the door independently of the release device.
Technical information
- 155° Opening angle
- PUSH-System
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 8,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
SKU | 221069 |
---|---|
Weight (Kg) | 0.170000 |
K | 3-9 mm |
Drilling depth | 9 mm |
ø | 35 mm |
Material | Zamak / Steel |
Fixings | Wood Screw |
Finish | Nickel Plated |
Opening angle | 155° |
DP | 48 x 6 |
