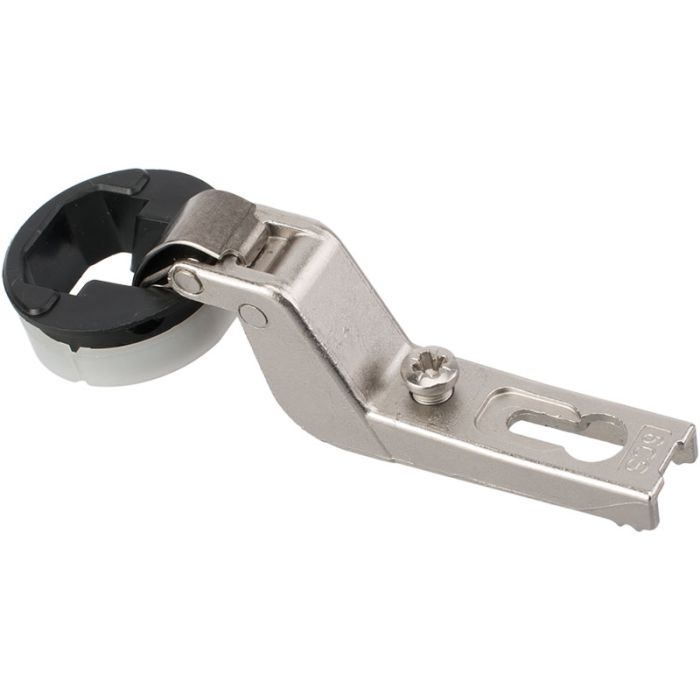

SALICE Glass Hinge Series 600 94° Inset C6C7S39
SALICE Series 600 Concealed Glass Hinge for inset glass door.
Technical information
- Hinge arm made of Steel Nickel Plated and cup made of plastic
- For glass between 4 and 6 mm thickness (Ø 26 mm)
- 94° Opening angle
- Possible drilling distance on the door (K): from 5,5 to 6,5 mm
Mounting- and decor/cover plate is not included and has to be ordered separately.
Technical information
- Hinge arm made of Steel Nickel Plated and cup made of plastic
- For glass between 4 and 6 mm thickness (Ø 26 mm)
- 94° Opening angle
- Possible drilling distance on the door (K): from 5,5 to 6,5 mm
Mounting- and decor/cover plate is not included and has to be ordered separately.
103 in stock
$2.88
| SKU | 200394 |
|---|---|
| Weight (Kg) | 0.036000 |
| K | 5,5-6,5 mm |
| ø | 26 mm |
| H= | H=-7+K+A |
| Material | Steel |
| Finish | Nickel Plated |
| Opening angle | 94° |
