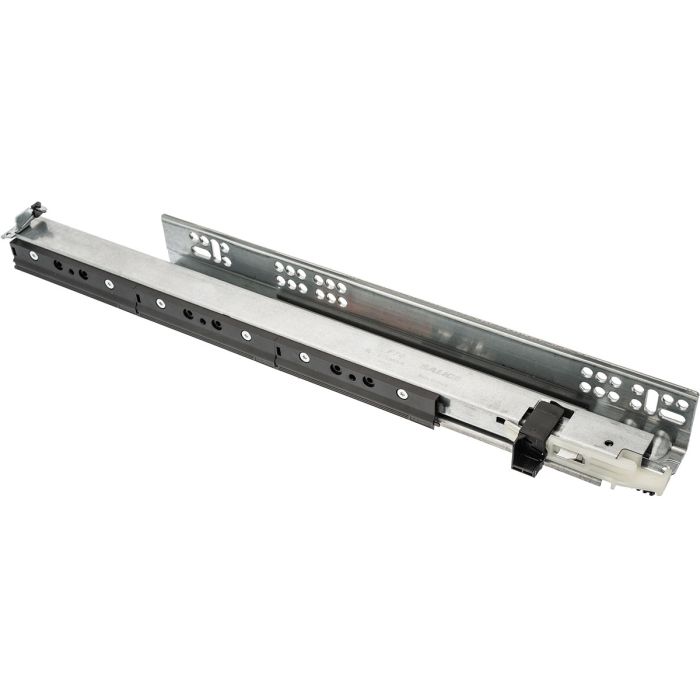

Salice F70 Smove Full Extension

Salice F70 Smove Full-extension with synchronised movement of the sliding elements to guarantee lateral stability and a perfectly silent sliding movement.

Product features
- Available in the full range of lengths from 350 mm in 50 mm increments to 750 mm
- SMOVE decelerated closing with 50 mm stroke
- Clip with pressed steel elements to fix the runner to the drawer
- Tool free sideways adjustment +/- 1.5 mm, integrated into the clip
- Tool free depth adjustment +/- 3 mm, integrated into the clip; through the oval slot on the runner it is possible to obtain a further depth adjustment of +/- 4.5 mm
- Tool free height adjustment + 2.5 mm, integrated into the clip; through the oval slot on the runner it is possible to obtain a further height adjustment of +/- 6 mm
- Tool free tilt adjustment + 3 mm (optional, when the optional lever is fitted)
- Max. drawer side thickness: 16 mm
- Compatible with Lineabox drawers
- Finish: bright zinc-plated

The Clip is not included and must be ordered separately.
