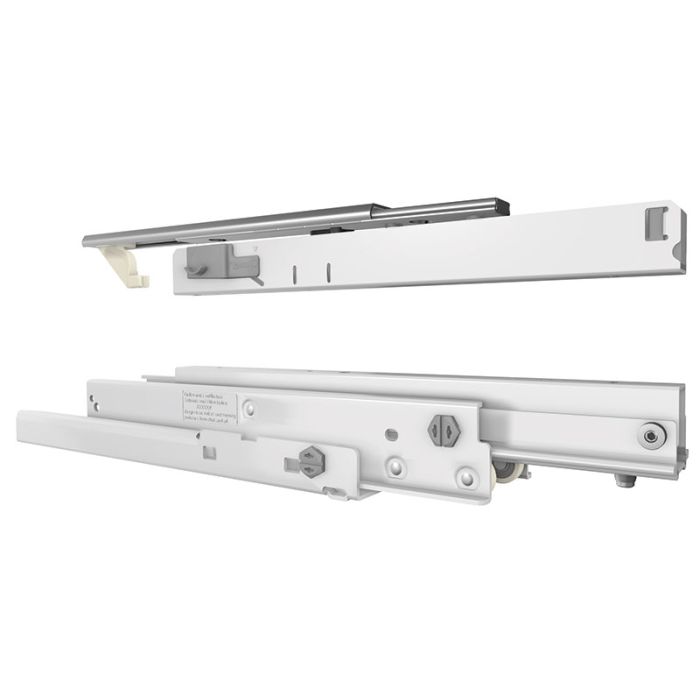

Pantry Pull Out Slide FR 771 120 Kg

Pantry Pull Out Slide FR 771 made of Steel, white powder coated, Bottom Mount. Loading capacity: dynamic up to 120 kg. Suitable for Wood Pantry Units or other special applications made of wood.

Specifications
- Progressive action full-extension pantry pull out slide with top slide, Bottom Mounted
- Solid delrin rollers, delrin- encased steel ball bearings
- Capacity: dynamic up to 120 kg
- Integrated lateral and height adjustment
- Quick and easy installation
- LGA-tested according to DIN 4554 standard at 50,000 cycles
- Lengths available from 400 up to 750 mm
- Easy Close System FR 771 ECD optional

Delivery time approx. 1-2 weeks
SKU 210190
Out of stock
SKU 210191
Out of stock
SKU 210192
Out of stock
SKU 210193
Out of stock
SKU 210194
Out of stock
SKU 210195
Out of stock
SKU 210196
Out of stock
SKU 210197
Out of stock
Unit 1 Piece
Material Steel, white powder coated
Loading Capacity 120 kg
