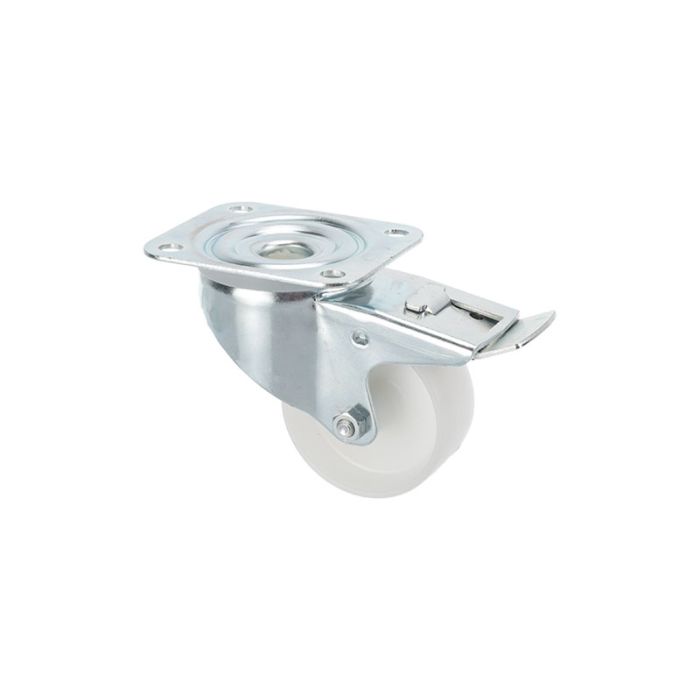

Industrial Swivel Caster Ø 80 with Brake Nylon
Tente Industrial swivel caster Ø 80, with brake, Nylon.
Specification
- Load capacity 200 kg
- Housing made of steel
- Bright zinc plated, blue passivated
- Double ball bearing swivel head
- Dust guard
- Wheel centre made of Polyamide (Nylon)
- Wheel axle with nut
- Plate fitting
- Plain bearing
Delivery time if the product is out of stock is approx. 1 week.
Specification
- Load capacity 200 kg
- Housing made of steel
- Bright zinc plated, blue passivated
- Double ball bearing swivel head
- Dust guard
- Wheel centre made of Polyamide (Nylon)
- Wheel axle with nut
- Plate fitting
- Plain bearing
Delivery time if the product is out of stock is approx. 1 week.
18 in stock
$28.80
| Manufacturer | Tente |
|---|---|
| Wheel diameter | 80 mm |
| Width of Tread | 34 mm |
| Swivel Interference | 246 mm |
| Overall height | 108 mm |
| Temperature | - 40 / + 80 °C |
| Standard | EN 12532 |
| Swivel Radius | 123 mm |
| Hardness of tread | Shore D 75 |
| Load capacity Dynamic / Static | 200 kg / 400 kg |
| Plate hole centres | 80/77 x 60 mm |
| Size of Plate | 105 x 85 mm |
| Weight (Kg) | 0.835000 |
| SKU | 219399 |
