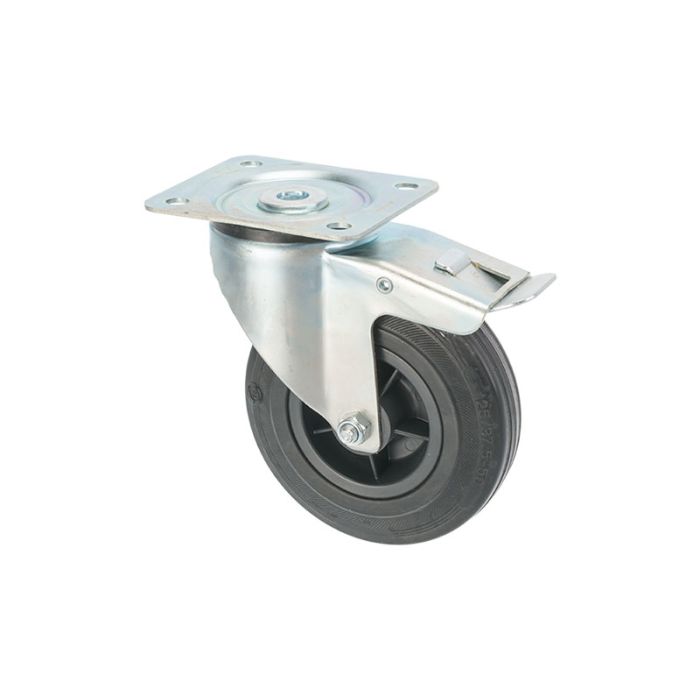

Industrial Swivel Caster Ø 125 with Brake Rubber

Tente Industrial swivel caster Ø 125, with brake, Rubber.
Specification
- Load capacity 100 kg
- Housing made of steel
- Bright zinc plated, blue passivated
- Double ball bearing swivel head
- Dust guard
- Wheel centre made of Polypropylene
- Tread: solid rubber, black
- Wheel axle with nut
- Plate fitting
- Roller bearing
Delivery time if the product is out of stock is approx. 1 week.
Specification
- Load capacity 100 kg
- Housing made of steel
- Bright zinc plated, blue passivated
- Double ball bearing swivel head
- Dust guard
- Wheel centre made of Polypropylene
- Tread: solid rubber, black
- Wheel axle with nut
- Plate fitting
- Roller bearing
Delivery time if the product is out of stock is approx. 1 week.
14 in stock
$24.80
Manufacturer | Tente |
---|---|
Wheel diameter | 125 mm |
Width of Tread | 37 mm |
Swivel Interference | 233 mm |
Overall height | 155 mm |
Temperature | - 20 / + 60 °C |
Standard | EN 12532 |
Swivel Radius | 116.5 mm |
Hardness of tread | Shore A 85 |
Load capacity Dynamic / Static | 100 kg / 200 kg |
Plate hole centres | 80/77 x 60 mm |
Size of Plate | 105 x 85 mm |
Weight (Kg) | 1.289000 |
SKU | 219396 |
