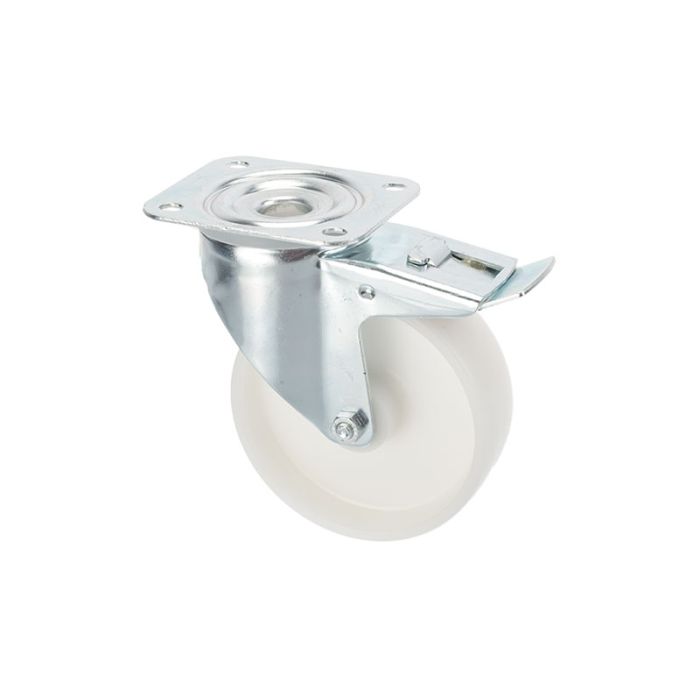

Industrial Swivel Caster Ø 125 with Brake Nylon
Tente Industrial swivel caster Ø 125, with brake, Nylon.
Specification
- Load capacity 200 kg
- Housing made of steel
- Bright zinc plated, blue passivated
- Double ball bearing swivel head
- Dust guard
- Wheel centre made of Polyamide (Nylon)
- Wheel axle with nut
- Plate fitting
- Plain bearing
Delivery time if the product is out of stock is approx. 1 week.
Specification
- Load capacity 200 kg
- Housing made of steel
- Bright zinc plated, blue passivated
- Double ball bearing swivel head
- Dust guard
- Wheel centre made of Polyamide (Nylon)
- Wheel axle with nut
- Plate fitting
- Plain bearing
Delivery time if the product is out of stock is approx. 1 week.
31 in stock
$32.80
| Manufacturer | Tente |
|---|---|
| Wheel diameter | 125 mm |
| Width of Tread | 40 mm |
| Swivel Interference | 246 mm |
| Overall height | 155 mm |
| Temperature | - 20 / + 60 °C |
| Standard | EN 12532 |
| Swivel Radius | 123 mm |
| Hardness of tread | Shore D 65 |
| Load capacity Dynamic / Static | 200 kg / 400 kg |
| Plate hole centres | 80/77 x 60 mm |
| Size of Plate | 105 x 85 mm |
| Weight (Kg) | 1.042000 |
| SKU | 219405 |
