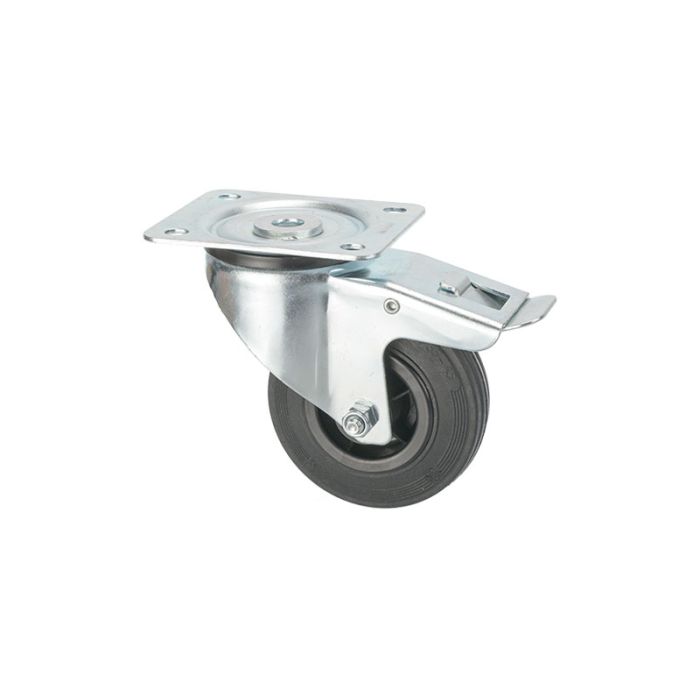

Industrial Swivel Caster Ø 100 with Brake Rubber
Tente Industrial swivel caster Ø 100, with brake, Rubber.
Specification
- Load capacity 75 kg
- Housing made of steel
- Bright zinc plated, blue passivated
- Double ball bearing swivel head
- Dust guard
- Wheel centre made of Polypropylene
- Tread: solid rubber, black
- Wheel axle with nut
- Plate fitting
- Roller bearing
Delivery time if the product is out of stock is approx. 1 week.
Specification
- Load capacity 75 kg
- Housing made of steel
- Bright zinc plated, blue passivated
- Double ball bearing swivel head
- Dust guard
- Wheel centre made of Polypropylene
- Tread: solid rubber, black
- Wheel axle with nut
- Plate fitting
- Roller bearing
Delivery time if the product is out of stock is approx. 1 week.
9 in stock
$25.80
| Manufacturer | Tente |
|---|---|
| Wheel diameter | 100 mm |
| Width of Tread | 35 mm |
| Swivel Interference | 246 mm |
| Overall height | 128 mm |
| Temperature | - 20 / + 60 °C |
| Standard | EN 12532 |
| Swivel Radius | 123 mm |
| Hardness of tread | Shore A 85 |
| Load capacity Dynamic / Static | 75 kg / 150 kg |
| Plate hole centres | 80/77 x 60 mm |
| Size of Plate | 105 x 85 mm |
| Weight (Kg) | 0.839000 |
| SKU | 219393 |
