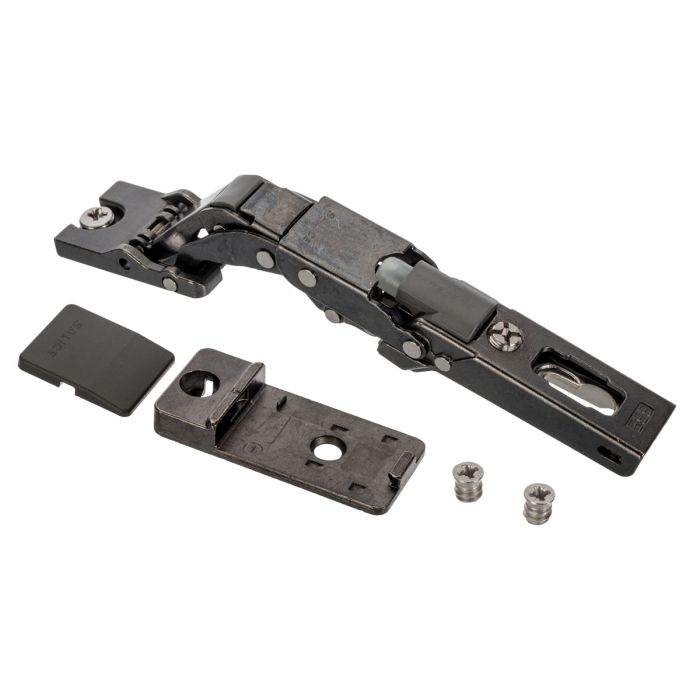

Hinge - SALICE Universal Soft-Close Titanium CBY2AE6

Hinge - SALICE Universal Soft-Close Titanium CBY2AE6, 110° opening with integrated soft-close.
The universal hinges are equipped with a fixing system that allows them to be fitted to doors with a minimum thickness of 8 mm.
The extremely reduced thickness enables the use of the doors made of special materials, such as metal, ceramics, cements, quartz composites, HPL, HDF and MDF.
Technical information
- Hinges for doors with a minimum thickness of 8 mm made with special materials
- 110° Opening angle
- with integrated soft-close mechanism
- Possible drilling distance on the door (K): from 0 to 22 mm
- Traditional or snap-on assembly of the door
- Delivered including mounting plate, euro screw and cover plate for the door
Mounting plate is not included and has to be ordered separately.
SKU | 220778 |
---|---|
Weight (Kg) | 0.092000 |
K | 0-22 mm |
Drilling depth | 8 mm |
Material | Steel / Zamak |
Fixings | Wood Screw |
Finish | Titanium |
Opening angle | 110° |
