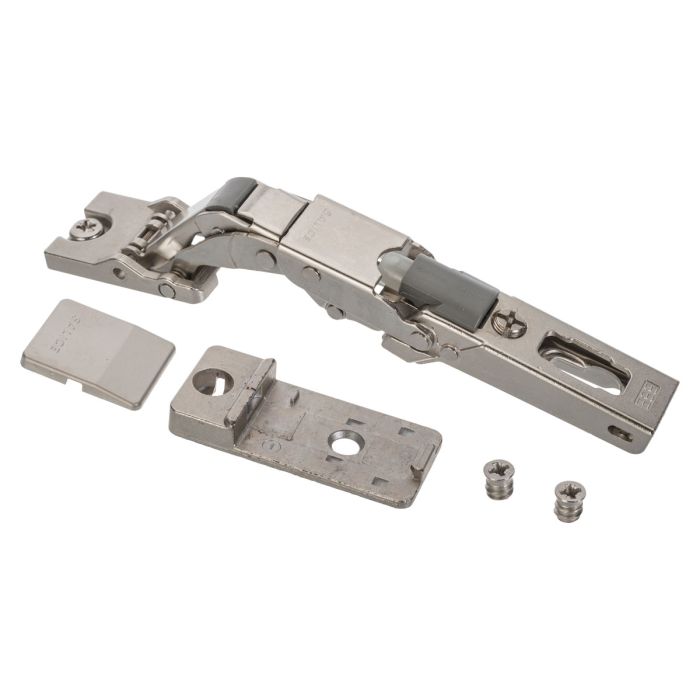

Hinge - SALICE Universal Soft-Close Nickel CBY2AE9

Hinge - SALICE Universal Soft-Close Nickel CBY2AE9, 110° opening with integrated soft-close.

The universal hinges are equipped with a fixing system that allows them to be fitted to doors with a minimum thickness of 8 mm.

The extremely reduced thickness enables the use of the doors made of special materials, such as metal, ceramics, cements, quartz composites, HPL, HDF and MDF.

Technical information
- Hinges for doors with a minimum thickness of 8 mm made with special materials
- 110° Opening angle
- with integrated soft-close mechanism
- Possible drilling distance on the door (K): from 0 to 22 mm
- Traditional or snap-on assembly of the door
- Delivered including mounting plate, euro screw and cover plate for the door

Mounting plate is not included and has to be ordered separately.

111 in stock
SKU 220768
Weight (Kg) 0.092000
K 0-22 mm
Drilling depth 8 mm
Material Steel / Zamak
Fixings Wood Screw
Finish Nickel Plated
Opening angle 110°
