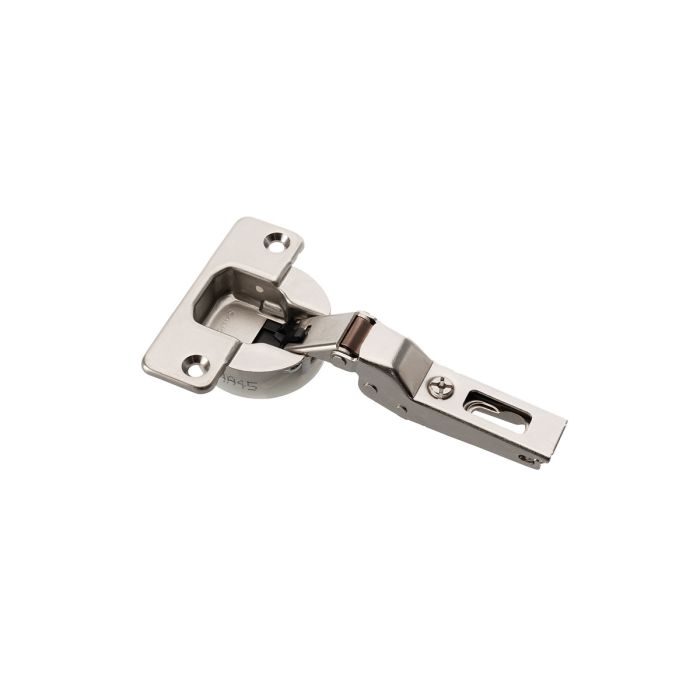

Hinge - SALICE Series N Silentia+ 94° Half Overlay CNA7GE9

Salice Series N Silentia+ 94° soft close hinge for half overlay door, CNA7GE9. Especially intended for thick or profiled doors.
Characteristics
- Nickel-plated steel
- 15,5 mm deep cup (Ø 40 mm)
- 94° Opening angle
- Possible hole drilling distance (K): from 3-14 mm
- Generous lateral adjustment options
- Height and depth adjustment via mounting plate
Mounting plate is not included and must be ordered separately.
SKU | 222000 |
---|---|
Weight (Kg) | 0.073000 |
K | 3-14 mm |
Drilling depth | 13 mm |
ø | 40 mm |
Finish | Nickel Plated |
Opening angle | 94° |
