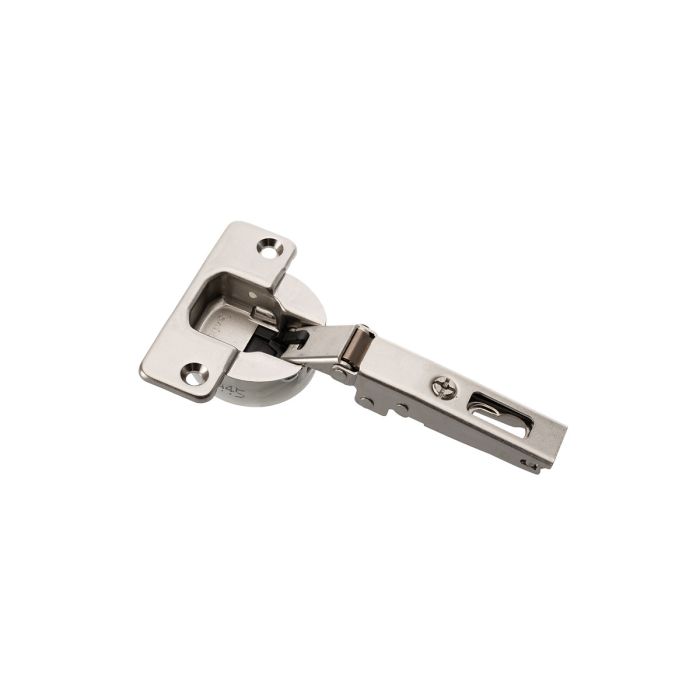

Hinge - SALICE Series N Silentia+ 94° Full Overlay CNA7AE9

Salice Series N Silentia+ 94° soft close hinge for full overlay door, CNA7AE9. Especially intended for thick or profiled doors.

Characteristics
- Nickel-plated steel
- 15,5 mm deep cup (Ø 40 mm)
- 94° Opening angle
- Possible hole drilling distance (K): from 3-14 mm
- Generous lateral adjustment options
- Height and depth adjustment via mounting plate

Mounting plate is not included and must be ordered separately.

300 ordered
SKU 221999
Weight (Kg) 0.070000
K 3-14 mm
Drilling depth 13 mm
ø 40 mm
Finish Nickel Plated
Opening angle 94°
