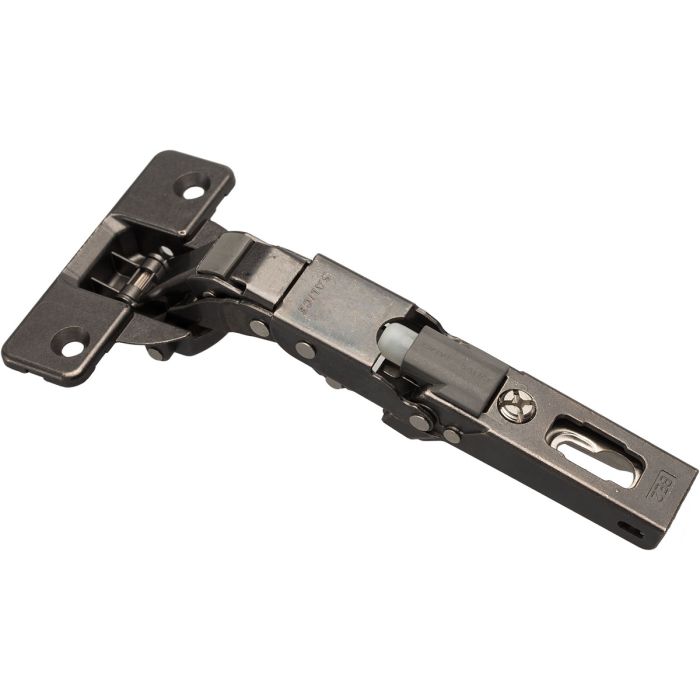

Hinge - SALICE Series B Soft-Close Titanium CBA2AE6

SALICE Series B Concealed hinge for special applications, 110° opening angle, 9 mm deep metal cup.
Models
- CBA2AE6 soft close (with integrated soft-close)
Technical information
- Hinge arm and cup made of steel and zamak, Titanium
- Hole pattern: 48 x 6 mm
- 110° Opening angle
- 9 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 21 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
SKU | 222103 |
---|---|
Weight (Kg) | 0.100000 |
K | 3-21 mm |
Drilling depth | 9 mm |
ø | 35 mm |
Material | Steel / Zamak |
Fixings | Wood Screw |
Finish | Titanium |
