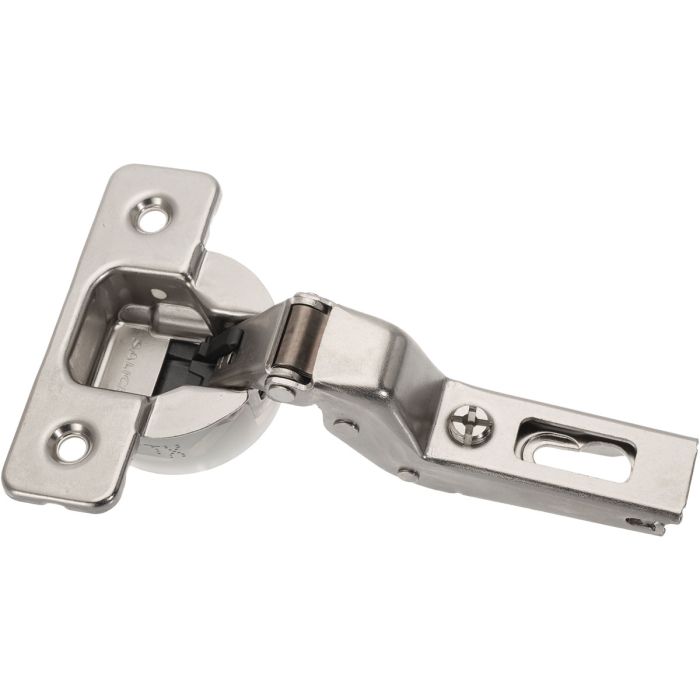

Hinge - Salice Series 200 Silentia+ 94° Inset for thick doors C2PBPE9

Hinge C2PBPE9 Series 200 Silentia+ 94° Self-closing hinge with integrated damping for inset thick doors. Max 35 mm

Features
- Nickel-plated steel finish
- Height and depth adjustment via mounting plate
- Fastening with wood screws
- Cup drilling pattern: 45 x 9.5 mm
- Possible door drilling distance (K): from 3-9 mm
- Drilling depth 15.5 mm
- Dual hydraulic dampers (silicone-based)
- Integrated damping adjustment +/-
- H = -2 + K + A
