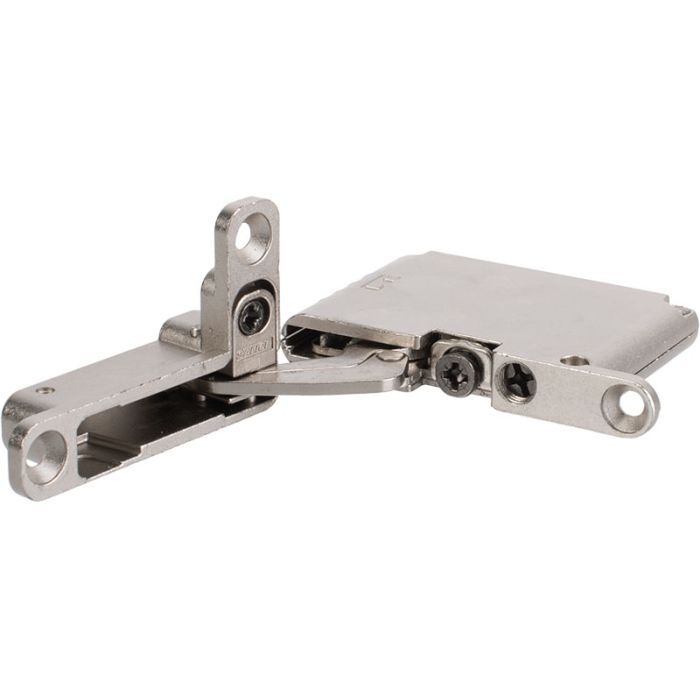

Hinge - SALICE Air CEL6SE9XXI Nickel Soft Close Left

Air Hinges, CEL6SE9XXI Nickel Soft Close Left, with integrated soft close mechanism, small and compact. To be fitted to the top and bottom panel of the cabinet.

Specification
- For min. 18 mm thick wooden doors and for aluminium-framed doors
- Max. door weight 25 Kg.
- Max. dimensions of the door : height 2700 mm, width 600 mm
- 16.5 mm deep metal cup
- L (gap between door and carcase) = 2.5 mm
- 105° opening
- Possible drilling distance on the door (K): from 3 to 6 mm for wooden doors
- Fixed K (Drilling distance) = 4 mm for aluminium-framed doors (DEL6LP300_)

Supplied individually, be sure to order the right side!!
