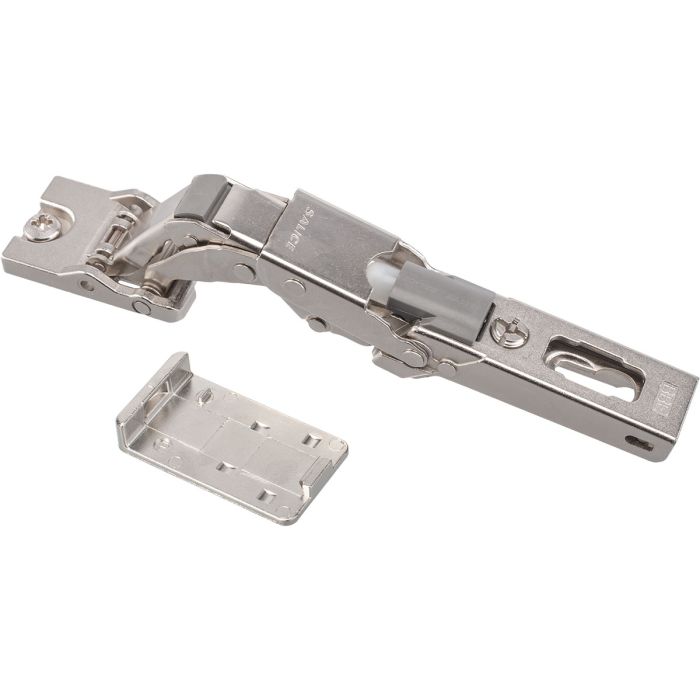

Glass / Mirror Hinge - SALICE Series B CBG2AX9
Glass / Mirror Hinge - SALICE Series B CBG2AX9 for glass doors.
Models
- CBG2AC9 sprung hinge

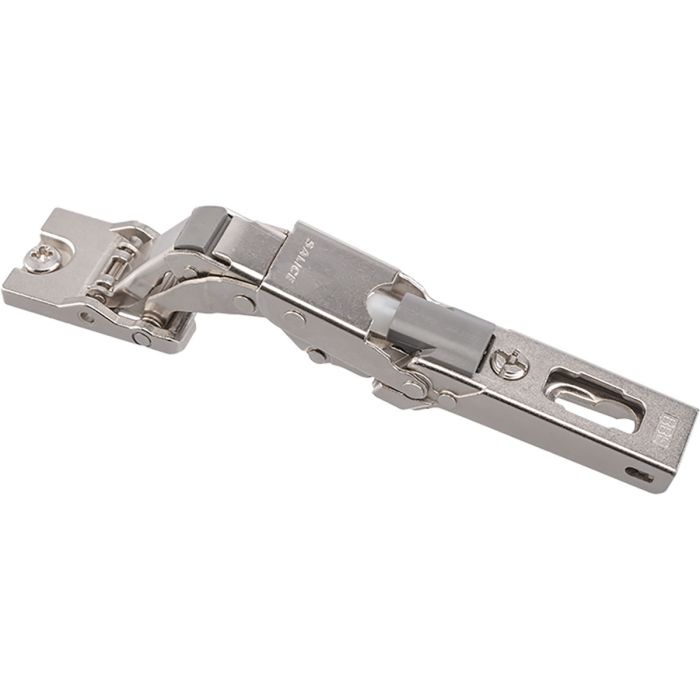

- CBG2AE9 soft close (with integrated soft-close)
Features
- Hinge arm and cup made of steel and zamak, nickel plated
- No drilling of the glass is required, glued to the glass
- 110° Opening angle
- Automatic closing
- Possible fixing distance on the door (K): from 0 to 22 mm
- Height and depth adjustment through the mounting plate
Mounting plate and glue plate PBGLZ09 is not included and has to be ordered separately.
- CBG2AC9 sprung hinge
- CBG2AE9 soft close (with integrated soft-close)
Features
- Hinge arm and cup made of steel and zamak, nickel plated
- No drilling of the glass is required, glued to the glass
- 110° Opening angle
- Automatic closing
- Possible fixing distance on the door (K): from 0 to 22 mm
- Height and depth adjustment through the mounting plate
Mounting plate and glue plate PBGLZ09 is not included and has to be ordered separately.
| K | 0-22 mm |
|---|---|
| H= | H=-1+K-(D) |
| Material | Steel / Zamak |
| Finish | Nickel Plated |
| Opening angle | 110° |
| K | 0-22 mm |
|---|---|
| H= | H=-1+K-(D) |
| Material | Steel / Zamak |
| Finish | Nickel Plated |
| Opening angle | 110° |
