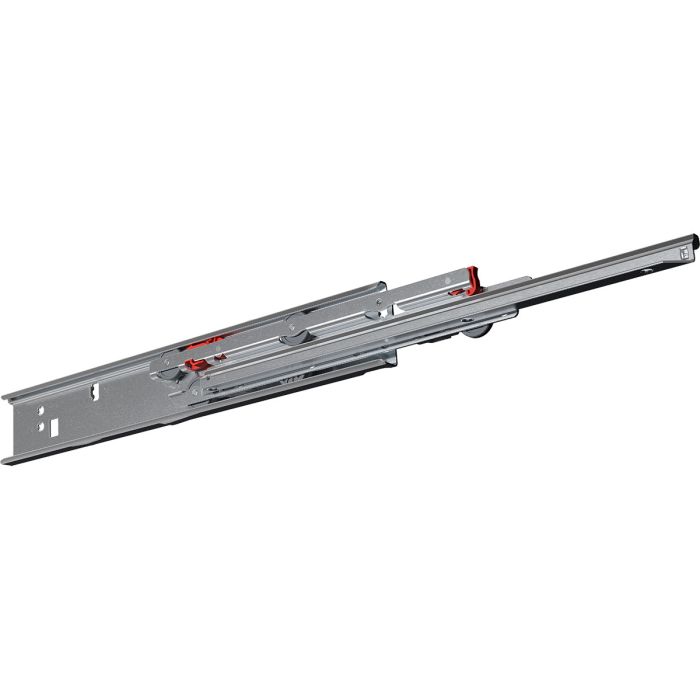

FR 796 SCC Full Extension Roller Slide, 70 kg, Stainless Steel
FR 796 SCC Full-Extension Roller Slide, 70 kg Load capacity, Stainless Steel 1.4509.
Features
- Width: 18 mm
- Bottom Mount
- Cabinet and drawer profile with screw holes
- High lateral stability through specially formed middle profile and guide rollers
- Ideal running characteristic and smoothness of running through integrated progressive-action
- Safety clip mounted in middle profile
- Double-sided captive profile
- Easy Close Device (ECD) can be ordered optionally
- Supplied in pairs
Delivery time out of stock items approx. 1-2 weeks.
Features
- Width: 18 mm
- Bottom Mount
- Cabinet and drawer profile with screw holes
- High lateral stability through specially formed middle profile and guide rollers
- Ideal running characteristic and smoothness of running through integrated progressive-action
- Safety clip mounted in middle profile
- Double-sided captive profile
- Easy Close Device (ECD) can be ordered optionally
- Supplied in pairs
Delivery time out of stock items approx. 1-2 weeks.
Product Name
Qty
SKU 221799
Out of stock. (Estimated delivery date (ETA) 2026-05-14 when ordering)
SKU 221800
Out of stock. (Estimated delivery date (ETA) 2026-05-14 when ordering)
SKU 221801
5 in stock
SKU 221802
1 in stock
SKU 221803
Back in stock on 08/05/2026
SKU 221804
5 in stock
SKU 221805
Out of stock. (Estimated delivery date (ETA) 2026-05-14 when ordering)
SKU 221806
2 in stock
| Unit | Pair |
|---|---|
| Feature | Full Extension |
| Material | Stainless steel (1.4509) |
| Loading Capacity | 70 kg |
| Selectable products in the package | 221799, 221800, 221801, 221802, 221803, 221804, 221805, 221806 |
