FR 790 SCC-SC Full Extension Roller Slide, 53 kg, Stainless Steel is out of stock
Contact us for exact delivery time (link to customer support)
Related categories you might like
Similar Products

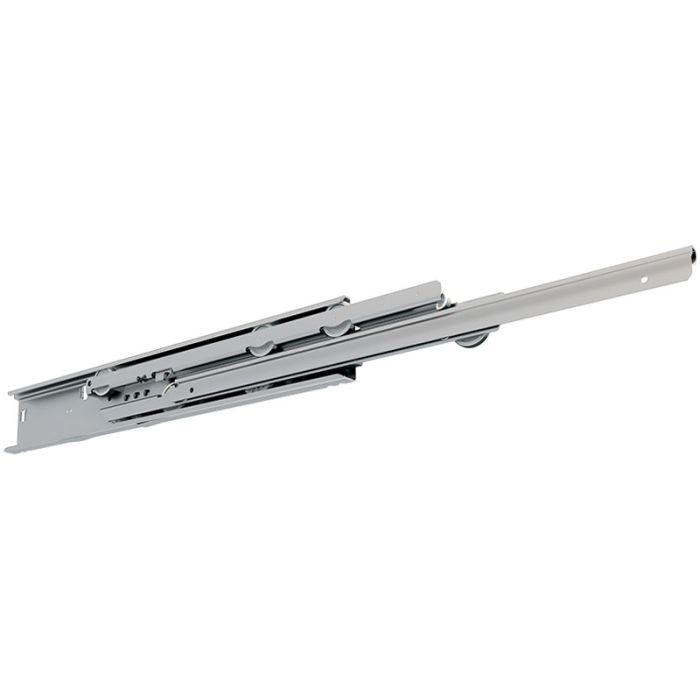

FR 790 SCC-SC Full Extension Roller Slide, 53 kg, Stainless Steel
FR 790 SCC-SC Roller Slide with over extension, 53 kg Load capacity, Stainless Steel 1.4509.
Features
- Width: 18 mm
- Side Mount
- Cabinet profile with bayonet 12 mm mounting tabs
- Drawer profile without screw holes
- High lateral stability through specially formed middle profile and guide rollers
- Ideal running characteristic and smoothness of running through integrated progressive-action
- Safety clip mounted in middle profile
- Double-sided captive profile
- Self closing, soft stop
- Available in lengths from 400 up to 700 mm
- Supplied in pairs
Delivery time out of stock items approx. 1-2 weeks.
Features
- Width: 18 mm
- Side Mount
- Cabinet profile with bayonet 12 mm mounting tabs
- Drawer profile without screw holes
- High lateral stability through specially formed middle profile and guide rollers
- Ideal running characteristic and smoothness of running through integrated progressive-action
- Safety clip mounted in middle profile
- Double-sided captive profile
- Self closing, soft stop
- Available in lengths from 400 up to 700 mm
- Supplied in pairs
Delivery time out of stock items approx. 1-2 weeks.
| Unit | Pair |
|---|---|
| Feature | Full Extension |
| Material | Stainless steel (1.4509) |
| Loading Capacity | 60 kg |
