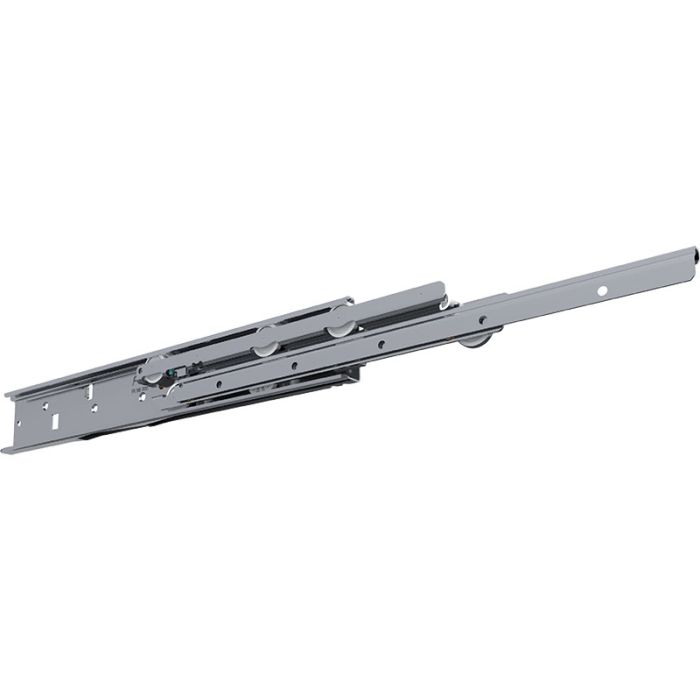

FR 785 SCC Full Extension Roller Slide, 60 kg, Stainless Steel

FR 785 SCC Full-Extension Roller Slide, 60 kg Load capacity, Stainless Steel 1.4509. Can be equipped with damper, ECD 78, for different temperature zones.

Features
- Width: 18 mm
- Side Mount
- Cabinet profile with screw holes
- Drawer profile with screw holes
- High lateral stability through specially formed middle profile and guide rollers
- Ideal running characteristic and smoothness of running through integrated progressive-action
- Safety clip mounted in middle profile
- Double-sided captive profile
- Self closing, soft stop
- Available in lengths from 400 up to 650 mm
- Supplied in pairs

Delivery time out of stock items approx. 1-2 weeks.
SKU 209490
3 in stock
SKU 209491
Out of stock
SKU 209492
Out of stock
SKU 209493
Out of stock
SKU 209494
Out of stock
SKU 209495
2 in stock
SKU 209496
Back in stock on 12/06/2025
Out of stock
SKU 209497
Out of stock
Unit Pair
Feature Full Extension
Material Stainless steel (1.4509)
Loading Capacity 60 kg
