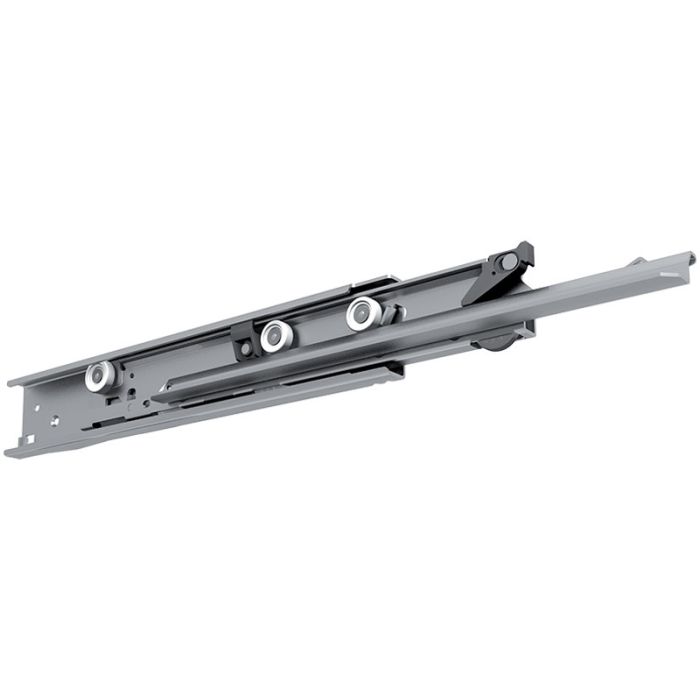

FR 7100 SCC Full Extension Roller Slide, 120 kg, Stainless Steel
FR 7100 SCC Full-Extension Roller Slide, 120 kg Load capacity, Stainless Steel 1.4509.
Features
- Width: 24 mm
- Bottom Mount
- cabinet profile with holes and drawer profile without holes for welding
- high lateral stability through specially formed middle profile and guide rollers
- ideal running characteristic and smoothness of running through integrated progressive-action
- safety clip mounted in middle profile
- double-sided captive profile
- self closing, soft stop
- Available in lengths from 400 up to 750 mm
- Supplied in pairs
Delivery time out of stock items approx. 1-2 weeks.
Features
- Width: 24 mm
- Bottom Mount
- cabinet profile with holes and drawer profile without holes for welding
- high lateral stability through specially formed middle profile and guide rollers
- ideal running characteristic and smoothness of running through integrated progressive-action
- safety clip mounted in middle profile
- double-sided captive profile
- self closing, soft stop
- Available in lengths from 400 up to 750 mm
- Supplied in pairs
Delivery time out of stock items approx. 1-2 weeks.
Product Name
Qty
SKU 210744
3 in stock
SKU 210745
2 in stock
SKU 209824
Out of stock. (Estimated delivery date (ETA) 2026-05-25 when ordering)
SKU 210746
Out of stock. (Estimated delivery date (ETA) 2026-05-25 when ordering)
SKU 209825
Out of stock. (Estimated delivery date (ETA) 2026-05-25 when ordering)
SKU 210747
1 in stock
SKU 210748
Out of stock. (Estimated delivery date (ETA) 2026-05-25 when ordering)
| Unit | Pair |
|---|---|
| Feature | Full Extension |
| Material | Stainless steel (1.4509) |
| Loading Capacity | 120 kg |
| Selectable products in the package | 210744, 210745, 209824, 210746, 209825, 210747, 210748 |
