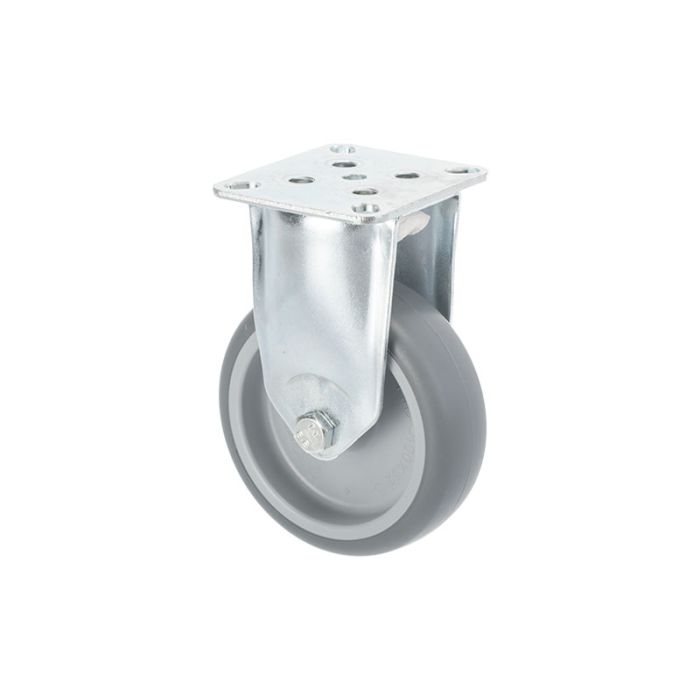

Fixed Caster Ø 100 without Brake

Tente fixed caster Ø 100 with Grey tread, without brake.
Specification
- Load capacity 80 kg
- Housing made of pressed steel
- Bright zinc plated, blue passivated
- Wheel axle with nut
- Wheel centre made of Polypropylene
- Tread: TENTEprene (thermoplastic rubber), grey non-marking
- Plate fitting
- Plain bearing
Delivery time if the product is out of stock is approx. 1 week.
Specification
- Load capacity 80 kg
- Housing made of pressed steel
- Bright zinc plated, blue passivated
- Wheel axle with nut
- Wheel centre made of Polypropylene
- Tread: TENTEprene (thermoplastic rubber), grey non-marking
- Plate fitting
- Plain bearing
Delivery time if the product is out of stock is approx. 1 week.
20 in stock
$33.80
Manufacturer | Tente |
---|---|
Wheel diameter | 100 mm |
Width of Tread | 32 mm |
Overall height | 135 mm |
Temperature | - 20 / + 60 °C |
Standard | EN 12530 |
Hardness of tread | Shore A 87 |
Load capacity Dynamic / Static | 80 kg / 160 kg |
Plate hole centres | 61,5/56 x 51,5/46,5 mm |
Size of Plate | 77 x 67 mm |
Weight (Kg) | 0.479000 |
SKU | 219374 |
