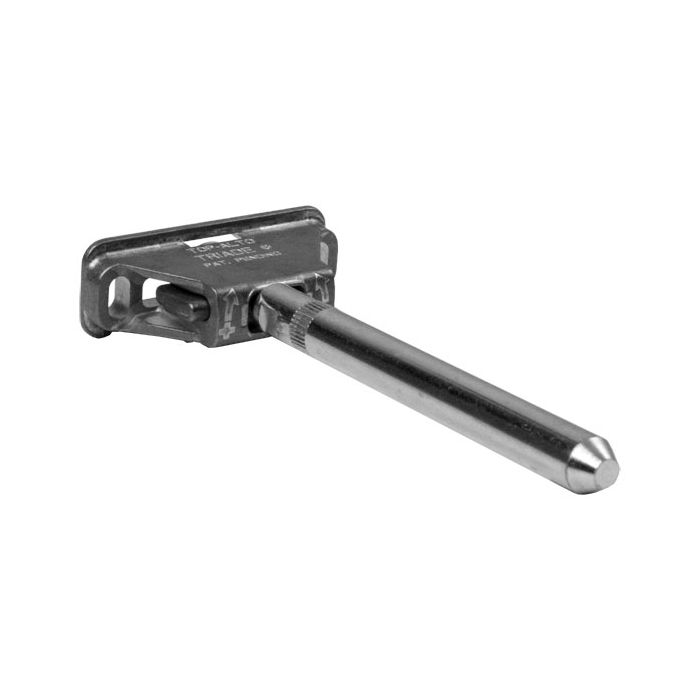

Triade Concealed Mounting Bracket
TRIADE is a concealed mounting bracket made of Zinc alloy and steel for shelves 25 to 40mm thick. It has been conceived to simplify the shelf installation. It is provided with three independent adjustments:
VERTICAL
Before installing the shelf, the mounting brackets can be adjusted in height and (vertically) aligned through the slots.
HORIZONTAL
While placing the shelf in position, the supporting pins can be slided horizontally.
INCLINATION
When the shelf is partially inserted, the shelf angle can be adjusted front to back by turning the supporting pins with a 10mm open-ended wrench.
The capacity loading is 15Kg each (shelf weight included) for a shelf max 300mm deep for the STANDARD version and 20Kg each (shelf weight included) for a shelf max 400mm deep for the MAXI version.
VERTICAL
Before installing the shelf, the mounting brackets can be adjusted in height and (vertically) aligned through the slots.
HORIZONTAL
While placing the shelf in position, the supporting pins can be slided horizontally.
INCLINATION
When the shelf is partially inserted, the shelf angle can be adjusted front to back by turning the supporting pins with a 10mm open-ended wrench.
The capacity loading is 15Kg each (shelf weight included) for a shelf max 300mm deep for the STANDARD version and 20Kg each (shelf weight included) for a shelf max 400mm deep for the MAXI version.
Product Name
Qty
SKU 202854
61 in stock
SKU 203195
42 in stock
SKU 207894
77 in stock
SKU 209406
54 in stock
SKU 209407
411 in stock
