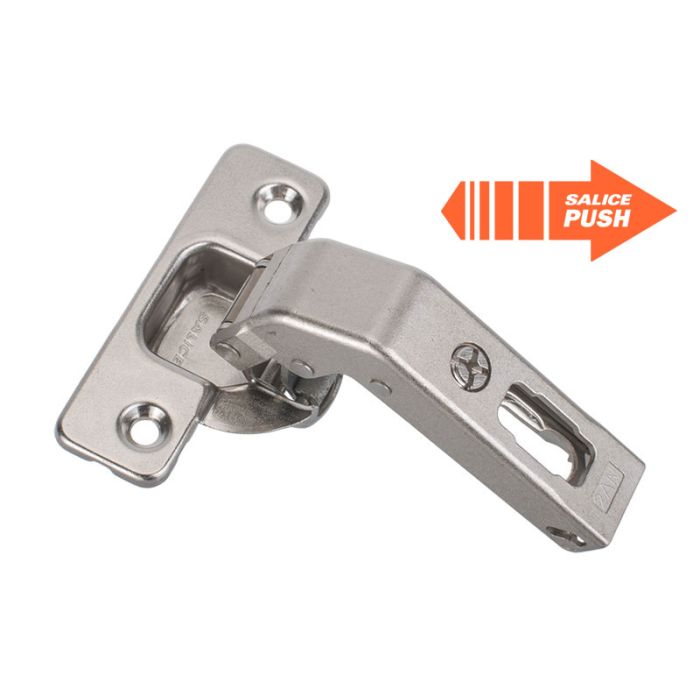

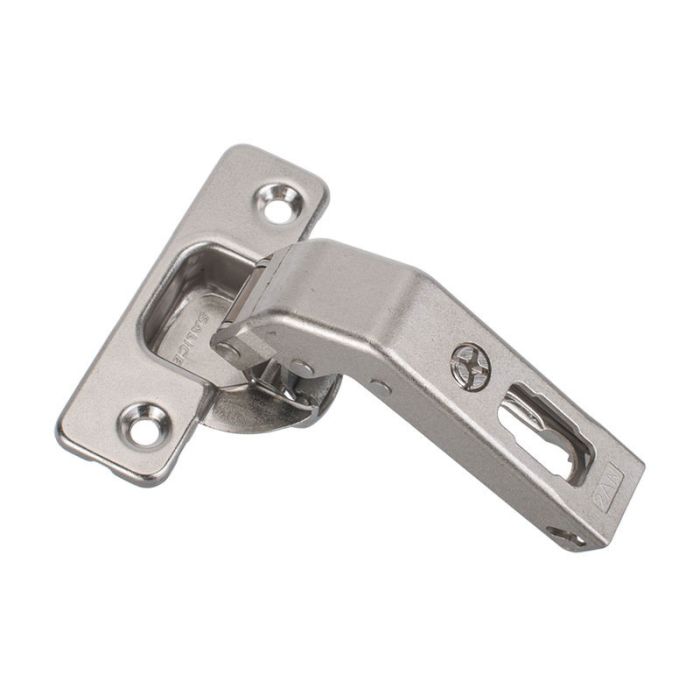

SALICE - Mini Hinge Series 200 94° C2AVN99
SALICE Series Push Mini Hinge for small spaces 94° Opening angle, C2AVN99. Must be combined with Release Device.
Technical information
- Hinge arm and cup made of Steel and Zamak, Nickel Plated
- 94° Opening angle
- For small spaces
- 11 mm deep metal cup (Ø 35 mm)
- Hole pattern: 48 x 6 mm
- Possible drilling distance on the door (K): from 3 to 9 mm
- Traditional assembly of the door
- Compatible with mounting plate B2SGH (28x32 mm drilling)
Mounting plate and release device is not included and has to be ordered separately.
Technical information
- Hinge arm and cup made of Steel and Zamak, Nickel Plated
- 94° Opening angle
- For small spaces
- 11 mm deep metal cup (Ø 35 mm)
- Hole pattern: 48 x 6 mm
- Possible drilling distance on the door (K): from 3 to 9 mm
- Traditional assembly of the door
- Compatible with mounting plate B2SGH (28x32 mm drilling)
Mounting plate and release device is not included and has to be ordered separately.
Out of stock
$6.98
| SKU | 202590 |
|---|---|
| Weight (Kg) | 0.075000 |
| K | 3-9 mm |
| Drilling depth | 11 mm |
| ø | 35 mm |
| Material | Steel / Zamak |
| Fixings | Wood Screw |
| Finish | Nickel Plated |
| Opening angle | 94° |
