SALICE - Hinge Series Push 165° Full Overlay C2USD99

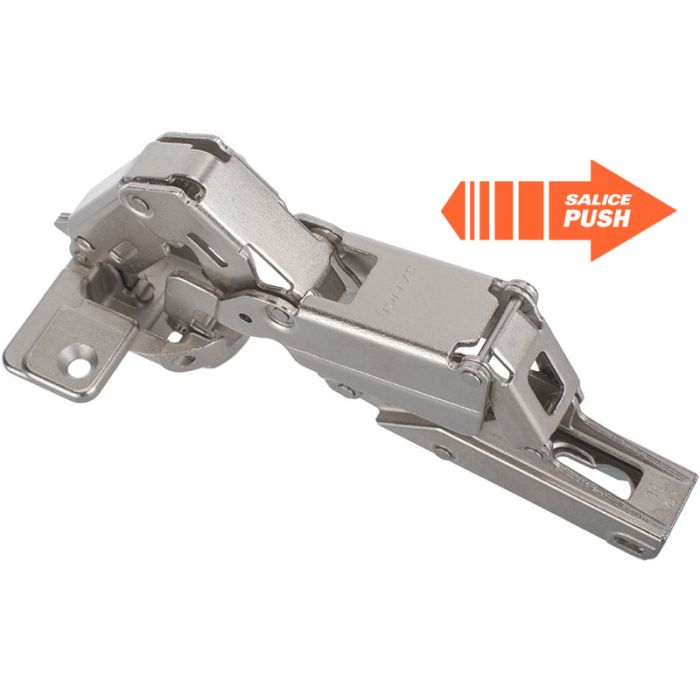

SALICE Series Push 165° Concealed hinge for full overlay door, with negative spring 'Push to Open', C2USD99. Must be combined with Release Device.

Technical information
- With negative spring (Push to open)
- 165° Opening angle
- Hole pattern: 52 x 5,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.

Mounting plate and release device is not included and has to be ordered separately.
201 in stock
SKU 203001
Weight (Kg) 0.161000
K 3-8 mm
Drilling depth 11 mm
ø 35 mm
H= H=10+K-(D)
Material Steel / Zamak
Fixings Wood Screw
Finish Nickel Plated
Opening angle 165°
