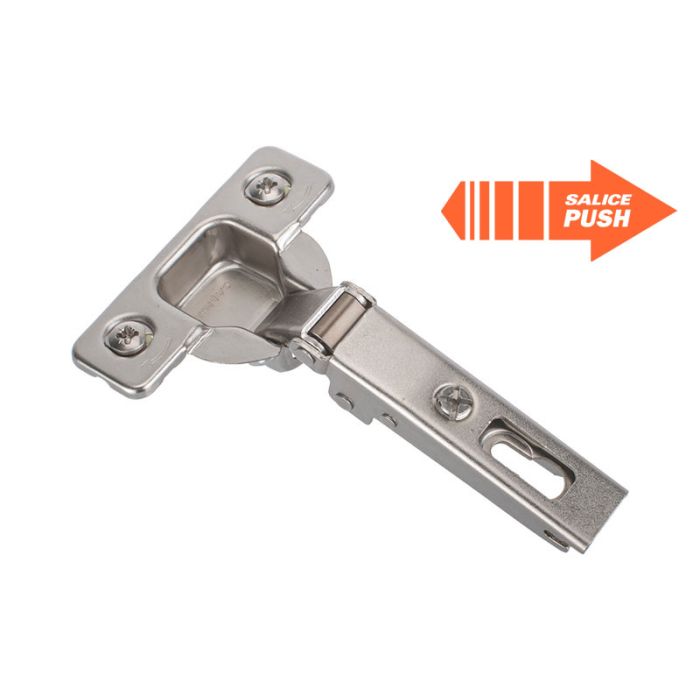

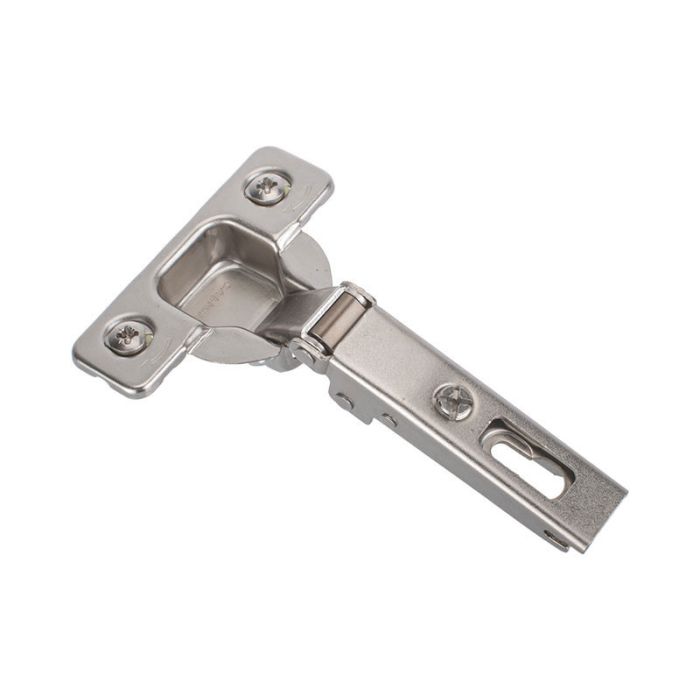

SALICE - Hinge Series Push 110° Full Overlay C27PA99
SALICE Series Push 110° Concealed hinge for full overlay door, with negative spring 'Push to Open', C27PA99. Must be combined with Release Device.
Technical information
- With negative spring (Push to open)
- 110° Opening angle
- Hole pattern: 45 x 9,5 mm
- Rapido fast mounting
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate and release device is not included and has to be ordered separately.
Technical information
- With negative spring (Push to open)
- 110° Opening angle
- Hole pattern: 45 x 9,5 mm
- Rapido fast mounting
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate and release device is not included and has to be ordered separately.
148 in stock
$4.78
| SKU | 203324 |
|---|---|
| Weight (Kg) | 0.069000 |
| K | 3-6 mm |
| Drilling depth | 11 mm |
| ø | 35 mm |
| H= | H=15+K-(D) |
| Material | Steel |
| Fixings | Rapido |
| Finish | Nickel Plated |
| Opening angle | 110° |
