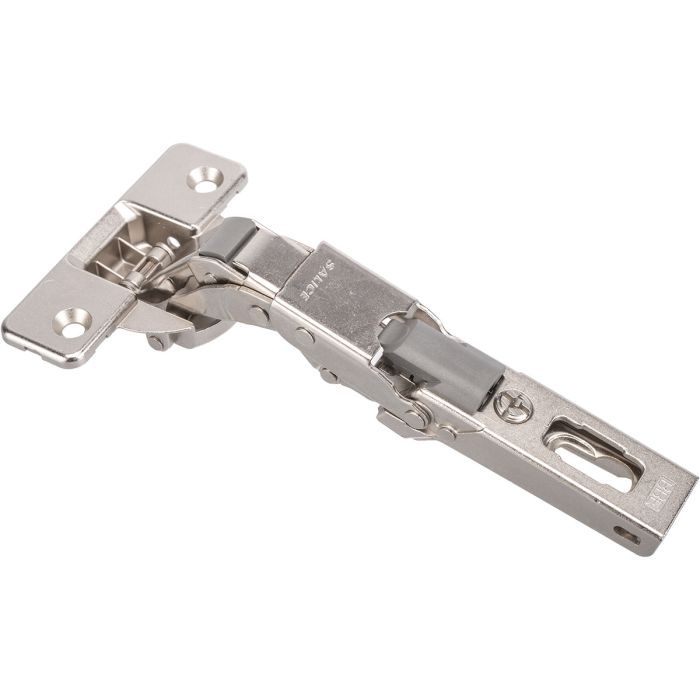

SALICE Hinge Series B 110° Special

SALICE Series B Concealed hinge for special applications, 110° opening angle, 9 mm deep metal cup.

Models
- CBA2AC9 sprung hinge
- CBA2AE9 soft close (with integrated soft-close)

Technical information
- Hinge arm and cup made of steel and zamak, nickel plated
- Hole pattern: 48 x 6 mm
- 110° Opening angle
- 9 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 21 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
