SALICE - Hinge Series 900 110° Full Overlay C9P6J99

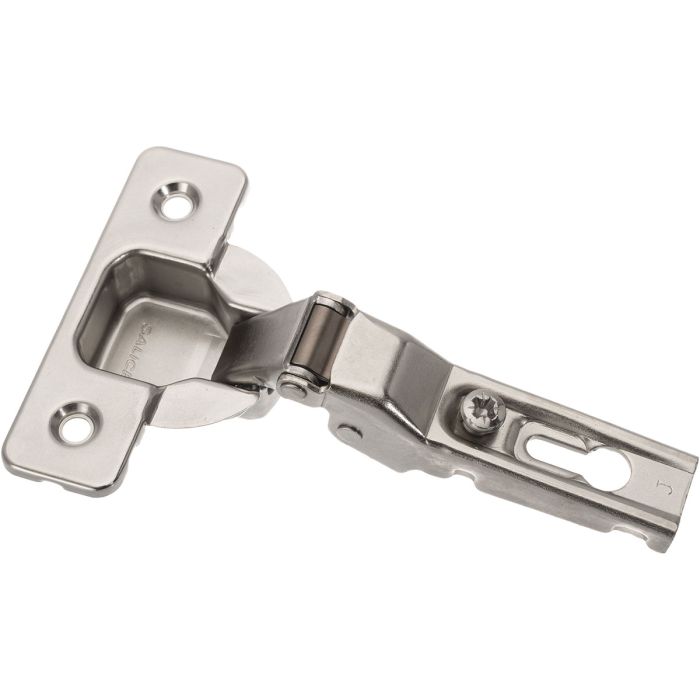

SALICE Series 900 110° Concealed hinge for full overlay door C9P6J99.
Technical information
- 110° Opening angle
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Fits mounting plate B2SGH and B2VGH only
Mounting plate is not included and has to be ordered separately.
SKU | 201491 |
---|---|
Weight (Kg) | 0.053500 |
Drilling depth | 11 mm |
ø | 35 mm |
H= | H=10+K-(D) |
Material | Steel |
Fixings | Wood Screw |
Finish | Nickel Plated |
Opening angle | 110° |
DP | 45 x 9,5 |
