SALICE - Hinge Series 800 94° Inset C8PBS99

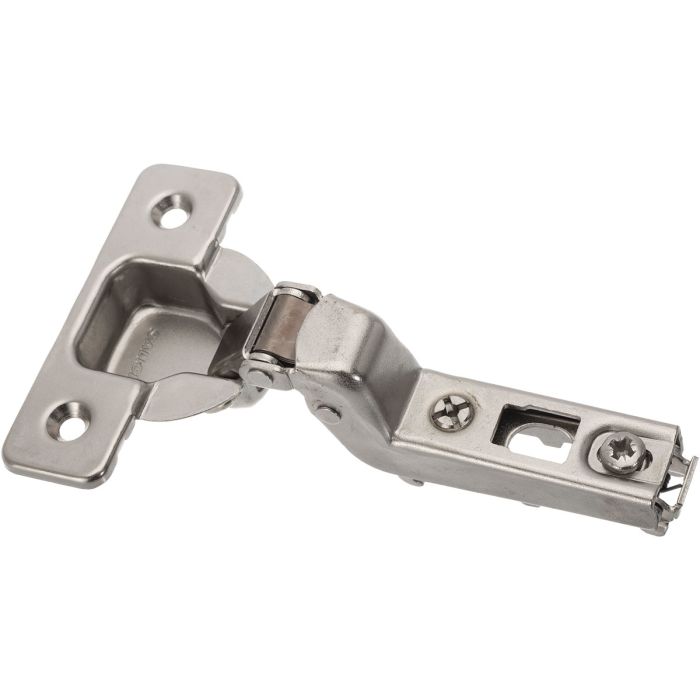

SALICE Series 800 94° Concealed hinge for inset door, C8PBS99.
Technical information
- 94° Opening angle
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Snap-on assembly of the door.
- Fits mounting plate B2SGH and B2VGH only
Mounting plate is not included and has to be ordered separately.
SKU | 200804 |
---|---|
Weight (Kg) | 0.069500 |
K | 3-6 mm |
Drilling depth | 11 mm |
ø | 35 mm |
H= | H=-2+K+A |
Material | Steel / Zamak |
Fixings | Wood Screw |
Finish | Nickel Plated |
Opening angle | 94° |
DP | 45 x 9,5 |
