SALICE - Hinge Series 700 Silentia+ 110° Inset C7P6PE9

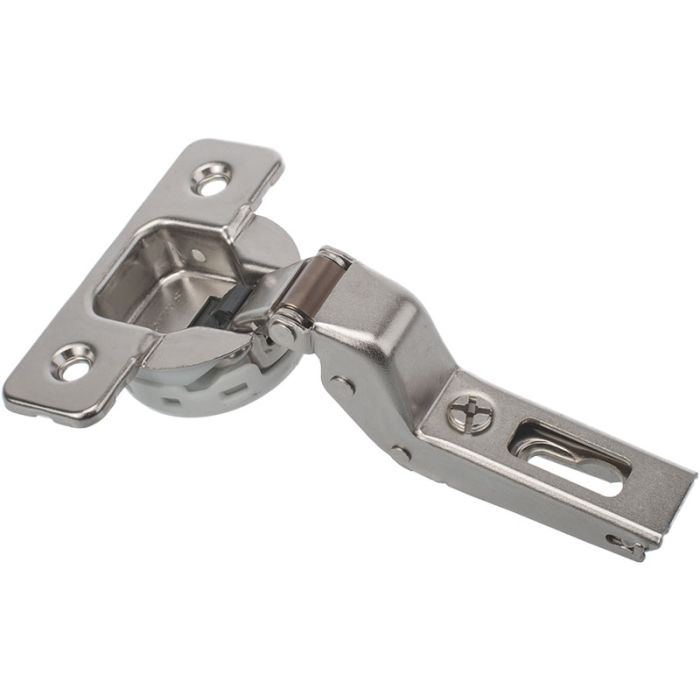

SALICE Series 700 110° Concealed hinge for inset door C7P6PE9.
Technical information
- 110° Opening angle
- with integrated soft-close mechanism in the hinge cup
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Technical information
- 110° Opening angle
- with integrated soft-close mechanism in the hinge cup
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
375 in stock
$4.18
| SKU | 203161 |
|---|---|
| Weight (Kg) | 0.067000 |
| K | 3-6 mm |
| Drilling depth | 13,5 mm |
| ø | 35 mm |
| H= | H=-2+K+A |
| Material | Steel |
| Fixings | Wood Screw |
| Finish | Nickel Plated |
| Opening angle | 110° |
| DP | 45 x 9,5 |
