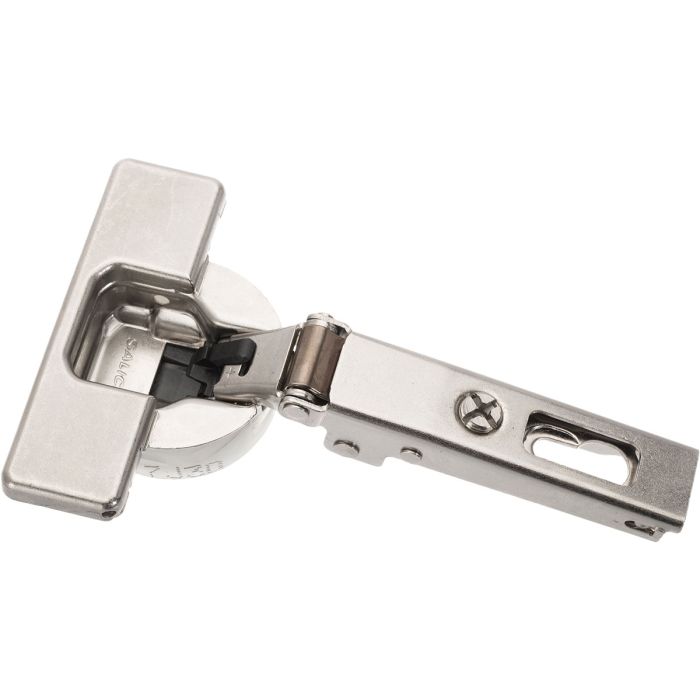

SALICE Hinge Series 700 Silentia+ 110° Full Overlay C7J6AE9 Logica

SALICE Series 700 110° Concealed hinge for full overlay door C7J6AE9, Logica.

Silentia+ is the second generation of Salice soft close hinges with two silicone oil dampers. Silentia+ is quipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.

Technical information
- 110° Opening angle
- with integrated soft-close mechanism in the hinge cup
- Switch +/- to adjust the soft close
- Hole pattern: 45 x 9,5 mm (Ø 8 mm)
- Toolless mounting (Logica)
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.

277 in stock
SKU 218930
Weight (Kg) 0.082000
K 3-6 mm
Drilling depth 13,5 mm
ø 35 mm
H= H=15+K-(D)
Material Steel
Fixings Wood Screw
Finish Nickel Plated
Opening angle 110°
DP 45 x 9,5

Description / SALICE Hinge Series 700 Silentia+ 110° Full Overlay C7J6AE9 Logica

Silentia 110° rapido
