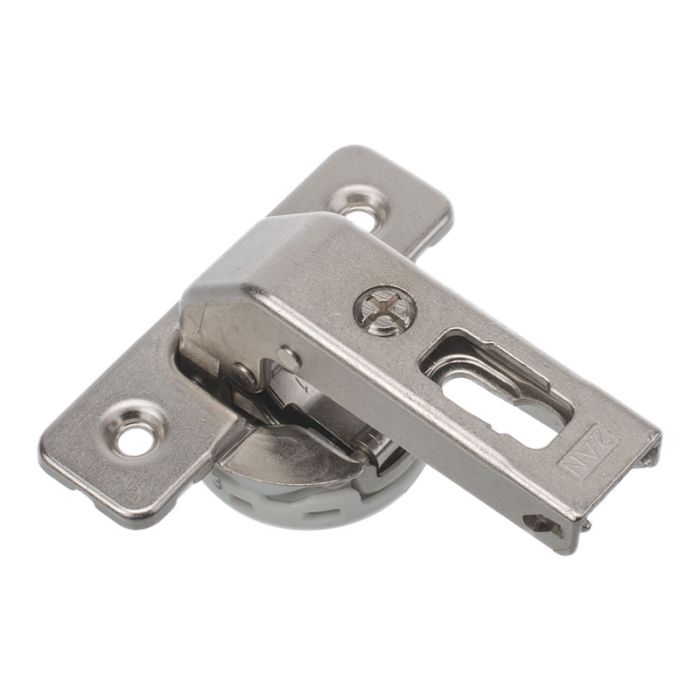

SALICE - Hinge Series 700 110° C7P6ND9

SALICE Series 700 110° Concealed hinge with integrated soft close, for small spaces, C7P6ND9.

Technical information
- 110° Opening angle
- with integrated soft-close mechanism in the hinge cup
- For small spaces
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Compatible with mounting plate B2SGH (28x32 mm drilling)

Mounting plate is not included and has to be ordered separately.
2 in stock
SKU 201557
Weight (Kg) 0.077000
K 3-6 mm
Drilling depth 13,5 mm
ø 35 mm
Material Steel / Zamak
Fixings Wood Screw
Finish Nickel Plated
Opening angle 110°
DP 45 x 9,5
