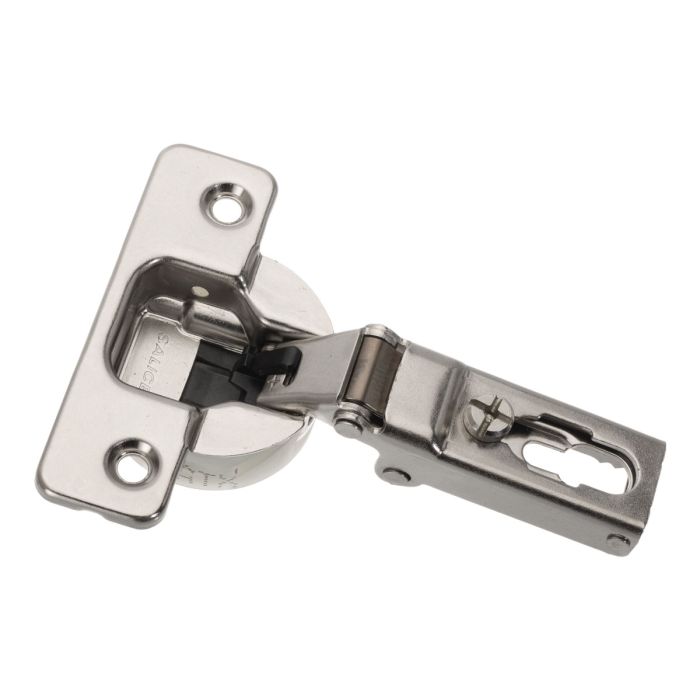

SALICE Hinge Series 300 Silentia+ 94° C3ABAE9

SALICE Series 300 Silentia+ 94° concealed hinge with short arm, just 45 mm operating profile, C3ABAE9.
Technical information
- 94° Opening angle
- with integrated soft-close mechanism in the hinge cup
- Switch +/- to adjust the soft close
- Hole pattern: 48 x 6 mm
- 15,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 9 mm
Mounting plate is not included and has to be ordered separately.
SKU | 203458 |
---|---|
Weight (Kg) | 0.065000 |
K | 3-9 mm |
Drilling depth | 15,5 mm |
ø | 35 mm |
H= | H=13+K-(D) |
Material | Steel |
Fixings | Wood Screw |
Finish | Nickel Plated |
Opening angle | 94° |
DP | 48 x 6 |
