SALICE Hinge Series 300 94°

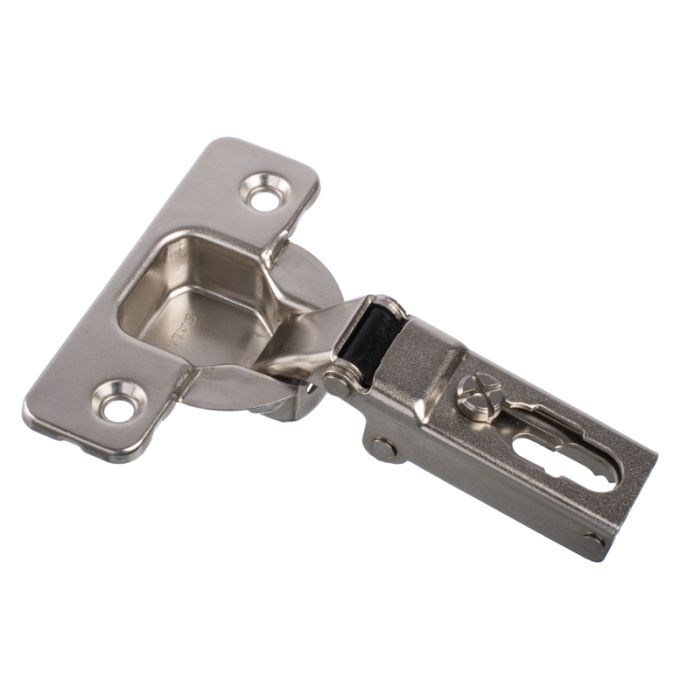

SALICE Serie 300 Concealed hinge with short arm, just 45 mm operating profile. 94° opening angle, 11 mm deep metal cup, ø 35 mm cup diameter. Possible drilling distance on the door (K): from 3 to 9 mm. Traditional assembly of the door.
Mounting plate is not included and has to be ordered separately.
K | 3-9 mm |
---|---|
Drilling depth | 11 mm |
ø | 35 mm |
Material | Steel |
Finish | Nickel Plated |
Opening angle | 94° |
