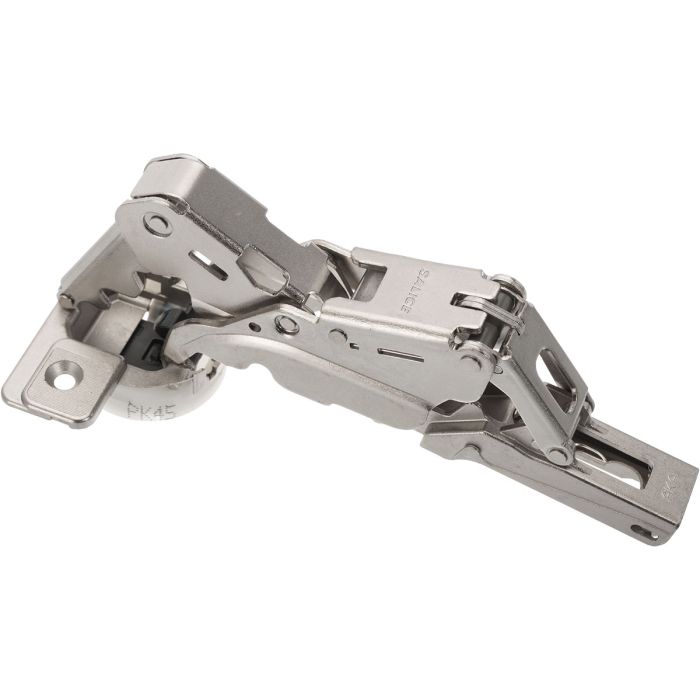

SALICE Hinge Series 200 Silentia+ 155° Full Overlay C2PKAE9

SALICE Series 200 Silentia+ 155° Concealed hinge for full overlay door C2PKAE9, Nickel finish.

Silentia+ is the second generation of Salice soft close hinges with two silicone oil dampers. Silentia+ is quipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.

Spaces with removable components.
The door combined with a mounting plate H=0 and a straight arm hinge opens at 90° with lateral door protrusion of 6 mm.

Technical information
- 155° Opening angle
- Special opening movement for thicker doors
- with integrated soft-close mechanism in the hinge cup
- Switch +/- to adjust the soft close
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 9 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
