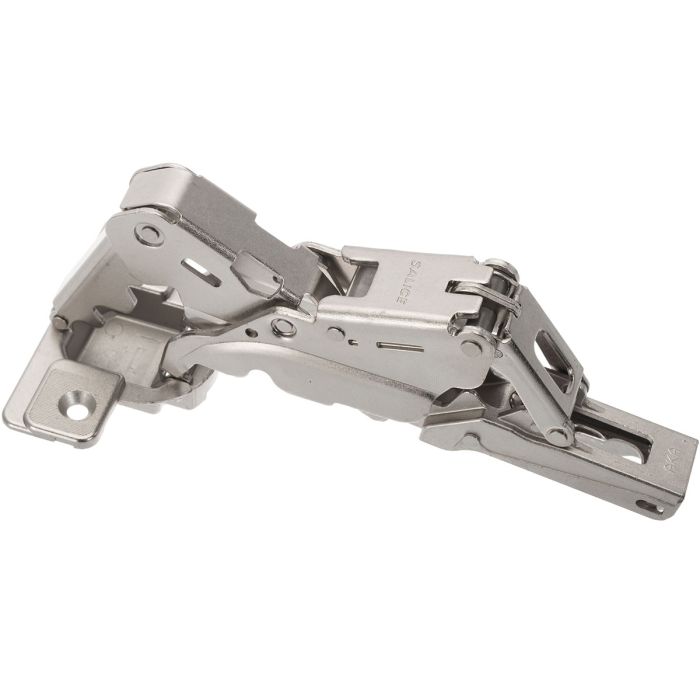

SALICE Hinge Series 200 Silentia 155° Full Overlay C2AKAE9
SALICE Series 200 155° concealed hinge for full overlay door C2AKAE9.
Technical information
- 155° Opening angle
- With integrated Soft Close (Silentia)
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Technical information
- 155° Opening angle
- With integrated Soft Close (Silentia)
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
62 in stock
$10.80
| SKU | 203366 |
|---|---|
| Weight (Kg) | 0.150000 |
| K | 3-8 mm |
| Drilling depth | 11 mm |
| ø | 35 mm |
| H= | H=15+K-(D) |
| Material | Steel / Zamak |
| Fixings | Wood Screw |
| Finish | Nickel Plated |
| Opening angle | 155° |
| DP | 48 x 6 |
