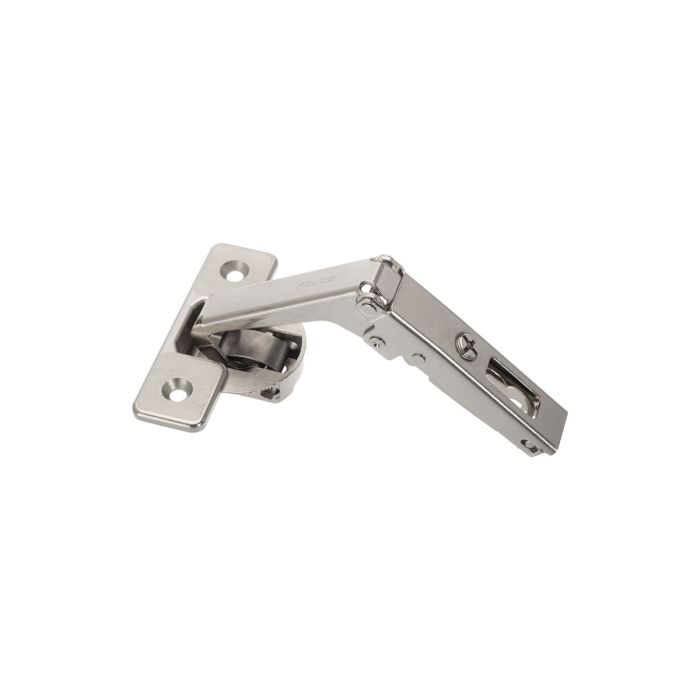

SALICE Hinge Series 200 70° for corner cabinets C2PYA99

SALICE Hinge Series 200 70° for corner cabinets C2PYA99.

Technical information
- Hinges for corner cabinets
- 11 mm deep die-cast cup
- 35 mm cup diameter
- Opening angle of the first door 70°
- Possible drilling distance on the door (K) : from 3 to 6 mm
- Maximum thickness of the door with square edges: 23 mm

Mounting plate is not included and has to be ordered separately.

127 in stock
SKU 200065
Weight (Kg) 0.077500
Drilling depth 11 mm
ø 35 mm
