SALICE - Hinge Series 200 +45° C2ABM99AC

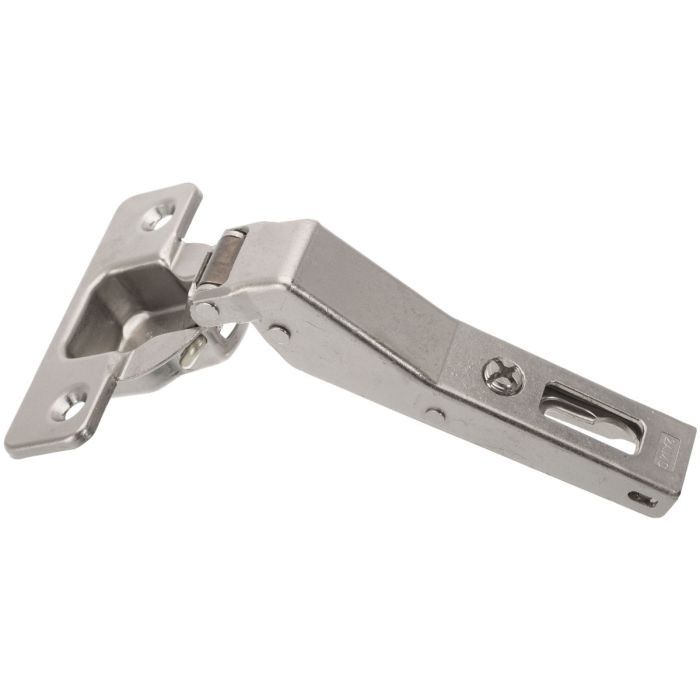

SALICE Series 200 94° Concealed hinge or wooden doors with 45° angled assembly, C2ABM99AC.
Technical information
- Hinges for wooden doors with 45° angled assembly
- Dimensions of the Ø 35 mm cup
- 11 mm deep metal cup
- 94° opening
- Possible drilling distance on the door (K): from 3 to 9 mm
- Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
- Hole pattern: 48 x 6 mm
SKU | 200055 |
---|---|
Weight (Kg) | 0.078500 |
K | 3-9 mm |
Drilling depth | 11 mm |
ø | 35 mm |
Material | Steel / Zamak |
Fixings | Wood Screw |
Finish | Nickel Plated |
Opening angle | 94° |
DP | 48 x 6 |
