SALICE - Hinge Series 200 -30° C2ABW99

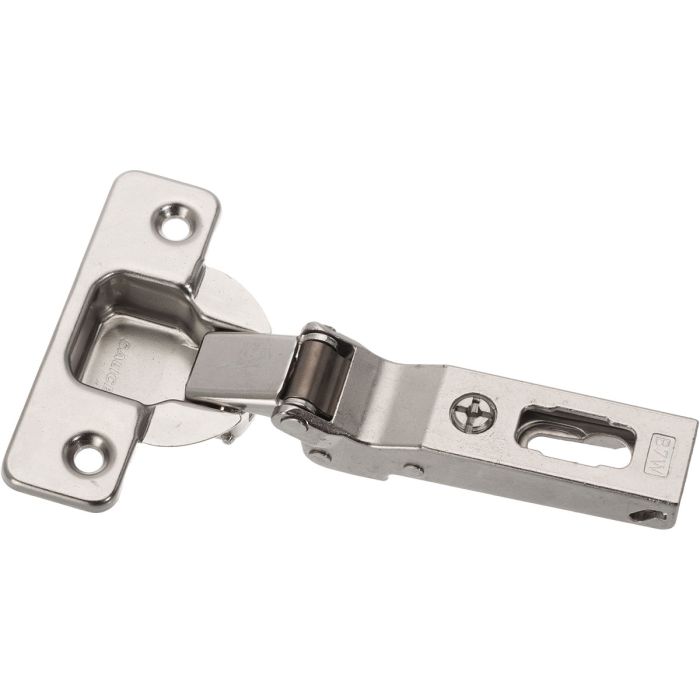

SALICE Series 200 120° Concealed hinge or wooden doors with 30° negative angled assembly, C2ABW99.
Technical information
- Hinges for wooden doors with negative angled assembly
- Dimensions of the Ø 35 mm cup
- 11 mm deep metal cup
- 120° opening
- Possible drilling distance on the door (K): from 3 to 6 mm
- Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
- Hole pattern: 48 x 6 mm
600 in stock
$2.78
| SKU | 200923 |
|---|---|
| Weight (Kg) | 0.069500 |
| K | 3-6 mm |
| Drilling depth | 11 mm |
| ø | 35 mm |
| Material | Steel |
| Fixings | Wood Screw |
| Finish | Nickel Plated |
| Opening angle | 120° |
| DP | 48 x 6 |
